Adjusting Deck Plates (Factory Setting)

NOTE: Deck plates are factory set.

1. Set cylinder (A) to closed position. Check left hand side deck plates to closed position and reset and tighten clamp if necessary.

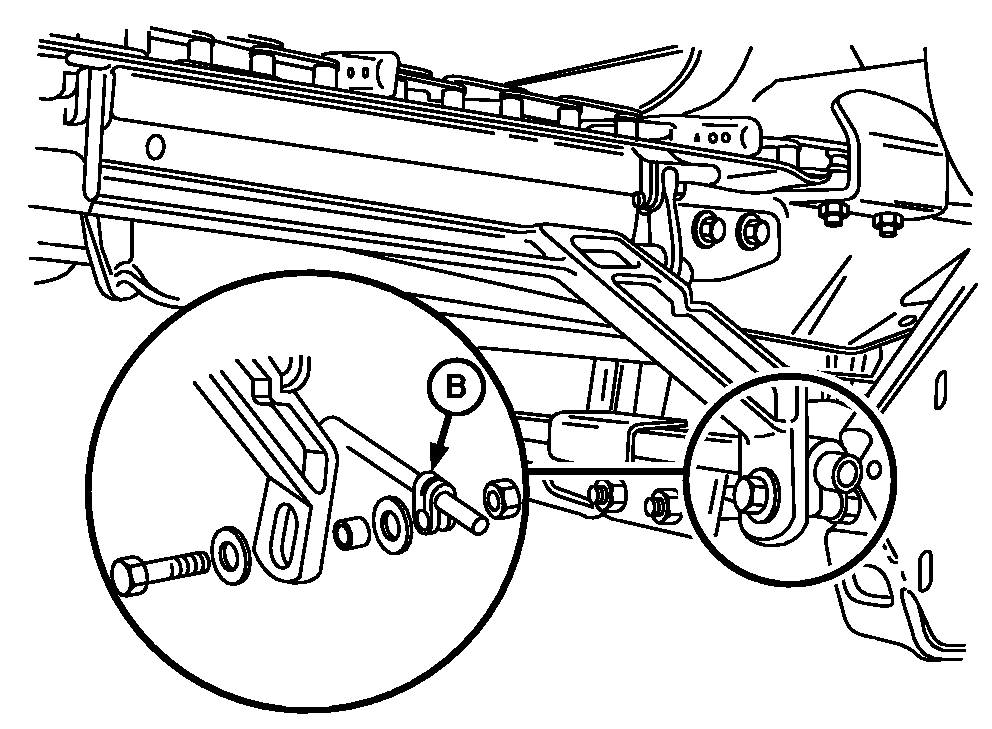

2. Clamp (B) should close and crimp tie bar when hardware is tightened. Install pivot arms on remaining row units.


A-Cylinder
B-Clamp

H84040
H84041

MH81805,000094E -19-21JUL05-1/2

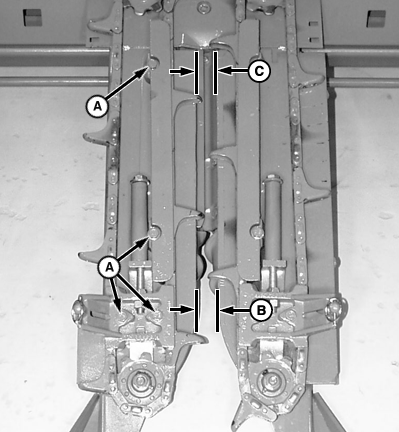

3. Loosen cap screws (A) retaining right hand side deck plate to row unit frame.

4. Set front spacing (B) to 18 mm (23/32 in.) and rear spacing (C) to 20 mm (25/32 in.).

5. Tighten cap screws to specification.

Specification

Deck Plate Mounting Cap -Torque 95 N·m (70 lb-ft)
