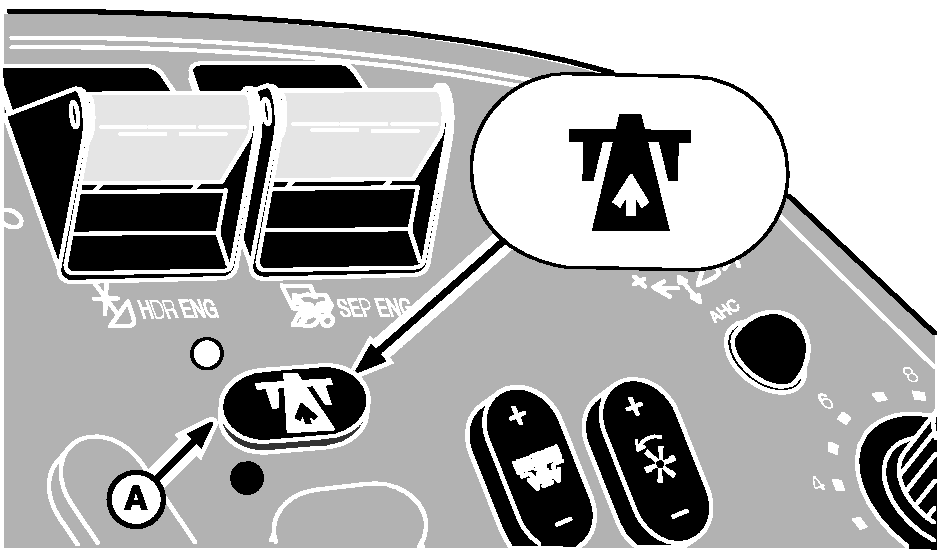

Road Transport Disconnect Switch (John Deere 50 and 60 Series Combines Only)IMPORTANT: Before driving combine on public roads, make sure that road transport disconnect switch (A) is in road position. Also move harvesting unit and unloading auger to transport position. This ensures that all hydraulic functions - with exception of the steering system - are not working. With road transport disconnect switch in road position, it is also not possible to engage separator and header drives. |
|
OUO6091,0001683 -19-09JUN03-1/1 |
