Detaching Header from Combine

1. Disconnect drive shaft coupler (A).

2. Place drive shaft in storage position (B).

NOTE: Latch pins should be fully retracted when handle is fully in detaching position. If pins do not fully retract see Feeder House latching Pins Cleanout or Feeder House Manual Unlatching in this section.

Manually unlatching feeder house pins may be required for some combines, see Manual Latch Feeder House Pins in Attaching Platform to Pre 60 Series Combines section.

3. Remove quick-lock pin and slide lock plate through multi-coupler latch assembly.

4. Raise handle to disconnect multi-coupler.

5. Remove multi-coupler cover from storage position on header and place cover on combine multi-coupler.

6. Place and lock multi-coupler in storage position (C).

H52778
H69924

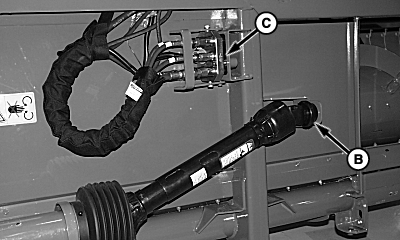

A-Quick Disconnect Coupler
B-Storage Position
C-Multi-Coupler Storage Position

JK22594,0000060 -19-26JUL06-1/2

7. Sound horn, start engine, lower feeder house until hooks (A) are below top beam of header, drive combine slowly rearward.


A-Hooks (2 on feeder house)

H70033

JK22594,0000060 -19-26JUL06-2/2
