Operating Flex Platform In Rigid Mode

NOTE: Increasing pressure with DIAL-A-MATIC knob will not allow HYDRAFLEX pressure to reach desired pressure for rigid operation.

Maximum pressure displayed (B) may vary on machines (plus or minus).

Operating flex platform in rigid mode may be desired for some crops and conditions. To operate in rigid mode, press (+) symbol on HYDRAFLEX pressure switch (A) to maximum available HYDRAFLEX pressure (B) on display.

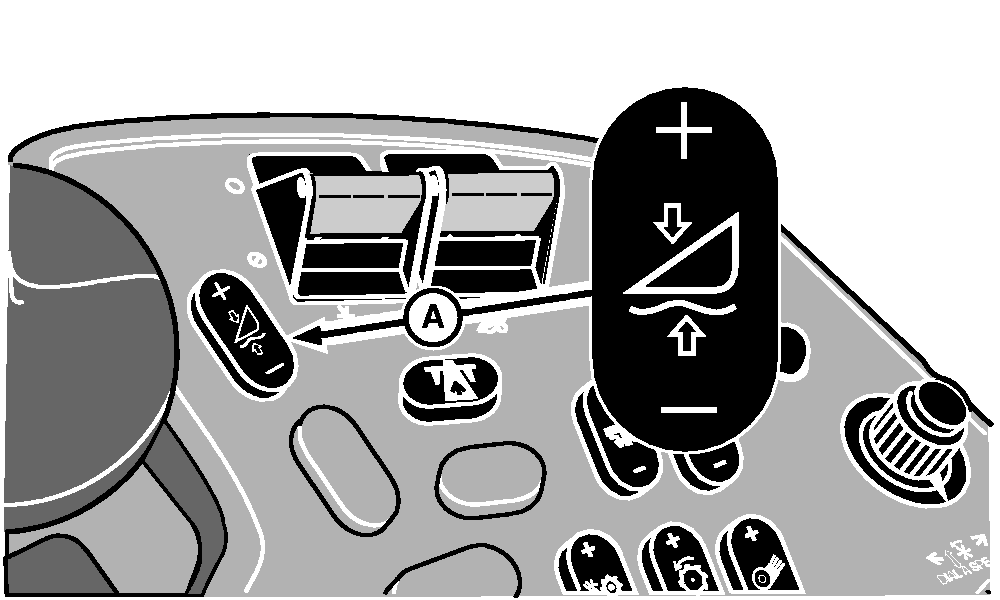

A-HYDRAFLEX Pressure Switch

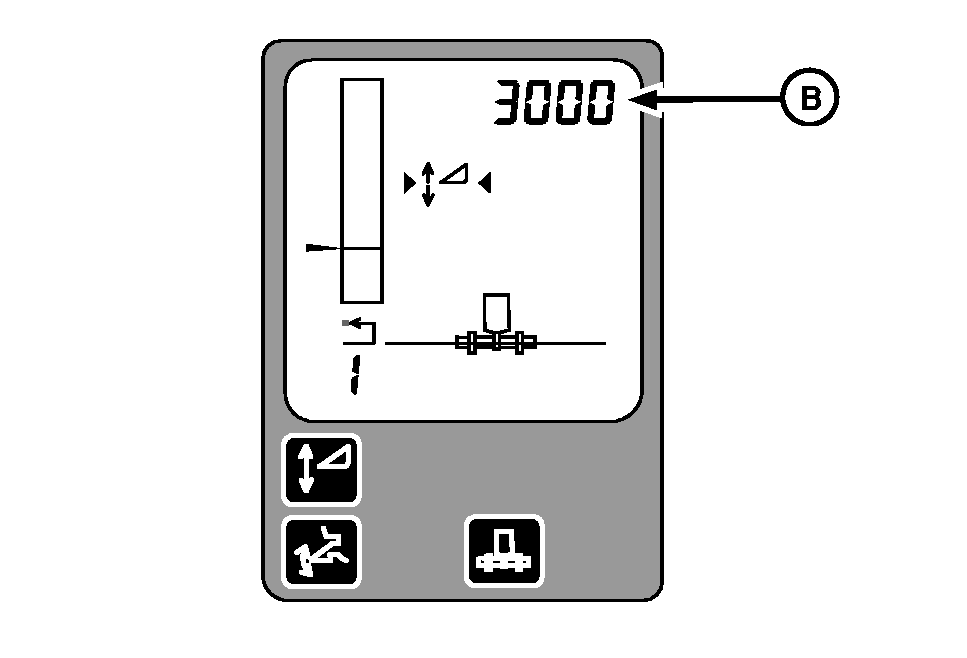

B-HYDRAFLEX Pressure

JK22594,0000068 -19-24JUL06-1/2

IMPORTANT: Install lockout brackets on float arms without hydraulic cylinders.

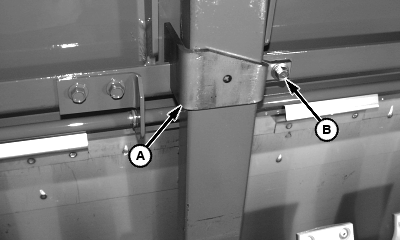

Install lockout brackets (A) on float arms using retain cap screws (B).

Move cap screw from float position (C) to lockout position (D).
