Low Stone Dam (Attachment or Option)

Low stone dam (A) can increase feeding and cutting capabilities in short crop conditions, as well as in double crop operations where there is excessive amounts of residue or old plant material that needs to be recut and fed into platform along with new crop. Low stone dams are also recommended for some specialty crops; peas, edible beans, lintels or for such crops that an air reel is desired.

See your John Deere dealer.

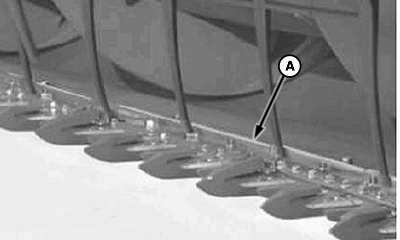

A-Low Stone Dam 24 mm (1 in.)

H80472

JK22594,0000073 -19-24JUL06-1/1
