OMH227052: 600 F and 600 R Series Cutting Platforms, Block File: JK22594_000007D_19

causym CAUTION: Avoid serious injury. Raise platform and reel completely, set safety stops.

Avoid serious injury. Shut off engine and remove key.

Avoid serious injury from cutterbar movement when auger is turned. Remove knife drive belt (see Remove Knife Drive Belt From Drive Sheave section).

IMPORTANT: To avoid damaging floor or fingers, maintain a minimum 16 mm (5/8 in.) clearance between center auger fingers and floor.

1. If Equipped with Clamp Design on Left Side Only: Loosen nuts (A) from brackets (B) to allow adjustment in auger support arm (C).

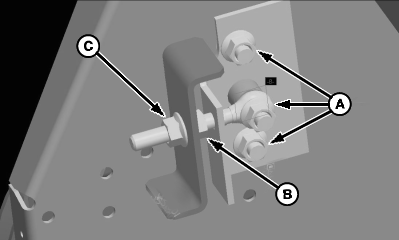

Auger Support Arm Clamp Design A

A-Nuts (6 used)
B-Bracket
C-Auger Support Arm

JK22594,000007D -19-29AUG06-1/3

2. Loosen nuts (A).

3. Loosen or tighten nuts (C) and (B) to gain desired auger position.

NOTE: Check auger chain tension (see Adjusting Auger Chain).

4. Tighten nuts (A-C) and auger drive chain idler (see Adjusting Auger Chain).

5. Repeat procedure on opposite end of auger.

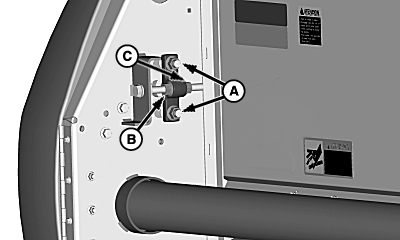

A-Nut (2 used)
B-Nut
C-Nuts

Adjustable Bracket Design Left Side ONLY

H86501

All Other Models

JK22594,000007D -19-29AUG06-2/3

6. On left side if clamp design tighten nuts (A) on brackets (B) on auger support arm (C).

A-Nuts (6 used)
B-Bracket
C-Auger Support Arm

Auger Support Arm Clamp Design

JK22594,000007D -19-29AUG06-3/3
