Replacing Auger Fingers and Retainers

causym CAUTION: Avoid serious injury from cutterbar movement when auger is turned. Remove knife drive belt (see Remove and Replace Knife Drive Belt in this section).

1. Open left-hand shield.

2. Pull up on tensioner arm sheave handle (A) to relieve belt tension.

3. Remove drive belt (B).

H75362

Rigid platform shown


A-Tensioner Arm Sheave Handle
B-Cutterbar Drive Belt

JK22594,0000084 -19-25JUL06-1/5

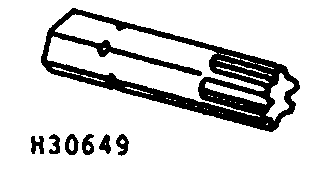

NOTE: Order JDC-3 from your John Deere dealer. Use driver with 1/4 to 3/8-in. adapter.

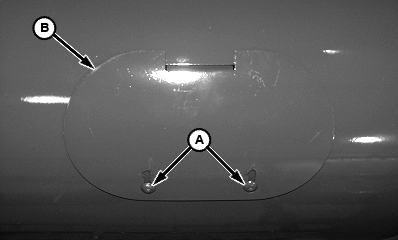

4. Use JDC-3 or TORX T-40 driver to loosen TORX screws (A) and remove access hole covers (B).


A-TORX® Screw
B-Access Hole Cover

H30649
H66667

TORX is a trademark of Camcar/Textron

JK22594,0000084 -19-25JUL06-2/5

NOTE: If replacing composite auger fingers, skip to step 7.

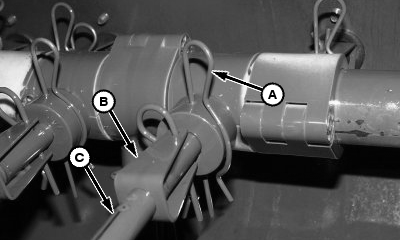

5. Steel Auger Fingers Only: Remove pin (A) and remove broken parts.

IMPORTANT: Replace auger finger retainers (B) when replacing steel auger fingers (C).

Make sure fingers are securely fastened by pins (A) before replacing access hole cover.

6. Install new parts and retain with pin (A).

H66674


A-Pin
B-Retainer
C-Finger

JK22594,0000084 -19-25JUL06-3/5

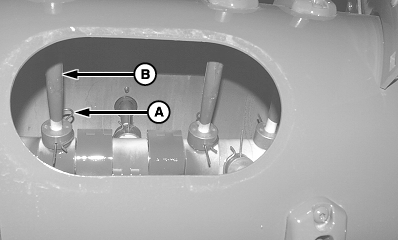

7. Composite Finger Only: Remove spring clip (A) and finger (B).

8. Install new finger and retain with spring clip.


A-Spring Clip
B-Composite Finger

H75519

JK22594,0000084 -19-25JUL06-4/5

9. Install access hole covers (B) and retain with TORX screws (A).

10. Reinstall drive belt and close left-hand end shield.


A-TORX Screw
B-Access Hole Cover

H66667

JK22594,0000084 -19-25JUL06-5/5
