Skid Plates with Header Height Control Sensors - Rigid Platform Only (Optional)

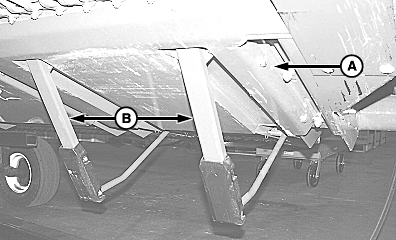

Header height Skid plates (A), on each end of platform are equipped with sensors arms (B).

These skid plates are provided with cutouts to permit the sensors to seat when the platform is fully lowered.

Sensor arms are attached at the front to a connector shaft which actuates the potentiometer mounted on the skid plate.

Sensors contact the ground up to a maximum cutting height of 356 mm (14 in.) and control cutting height and lateral tilt of platform.

A-Skid Plate
B-Sensor Arms

JK22594,000008B -19-18AUG06-1/2

IMPORTANT: Avoid damage to sensors, place sensors in the lock-out position when transporting or storing platform.

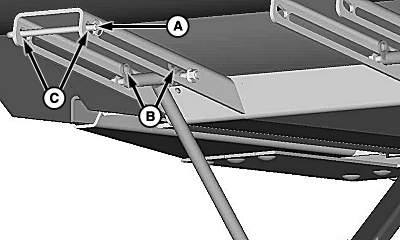

Remove pins (A) and align lock-out holes (B) with holes (C) and insert pins. Repeat steps for other side.

A-Pins (4 used)
B-Lock-Out Holes
C-Holes
