Rear Auger Stripper Extension Location

causym CAUTION: Cutterbar and knives will move whenever the auger is rotated. Keep hands, feet and clothing away from cutterbar when servicing, inspecting or rotating the auger.

NOTE: Verify that strippers are not obstructing feeding area of feeder house.

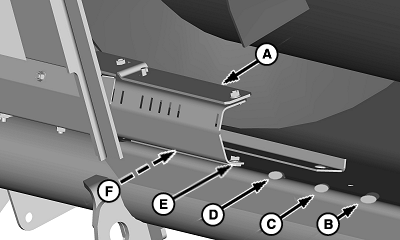

The auger strippers (A) can be positioned in five different locations (B), (C), (D), (E) and (F). Correct stripper position ensures good crop feeding.

Platforms are shipped from the factory with the auger strippers in position (E).

Rear Auger Stripper Extension Location
Machine Location (figure 1)
9560 STS (Serial No. -720101) B
9560 STS (Serial No. 720101-) C
All Other Machines (All Other Machines Serial No. -720101) D
9660 STS, 9760 STS and 9860 STS, (Serial No. 720101-) E
9600 CWS, 9610 CWS, 9650 CWS, 9660 CWS and 9660 WTS F


H86483

Figure 1


A-Stripper
B-Location (9560 STS -720101)
C-Location (9560 STS 720101-)
D-Location (All Other Machines -720101)
E-Location (9660 STS, 9760 STS and 9860 STS, 720101-)
F-Location (9600 CWS, 9610 CWS, 9650 CWS, 9660 CWS and 9660 WTS)

JK22594,0000117 -19-24AUG06-1/1
