Header Calibration

The header calibration must be performed when a header is first used with a combine or when any of the sensors are replaced. The Height Resume sensor must be operating.

NOTE: HYDRAFLEX heads with auxiliary sensors should be calibrated with auxiliary sensor connector unplugged for normal flex operation, or with connector engaged for cutting standing crops 100-350 mm (4-14") off ground. See "Active Header Control Operation" for additional details.

Prepare the header for calibration:

  • Attach header to combine and connect header harness to combine harness
  • Make sure header height sensors (if equipped) are operating
  • Start combine and drive onto a level firm surface

MH81805,0000887 -19-02MAY05-1/11

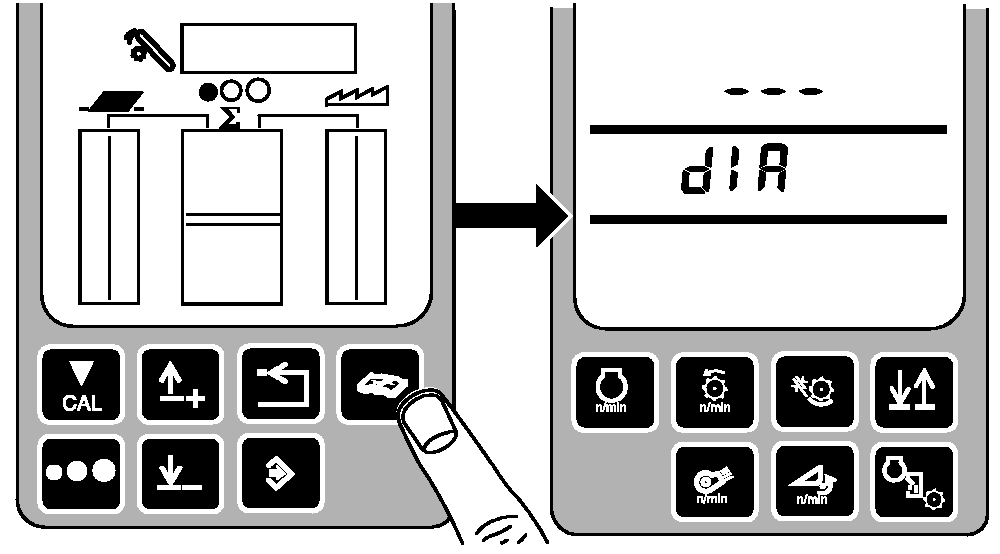

Press the diagnostic switch. DIA will appear on the triple display tachometer.

H71445

MH81805,0000887 -19-02MAY05-2/11

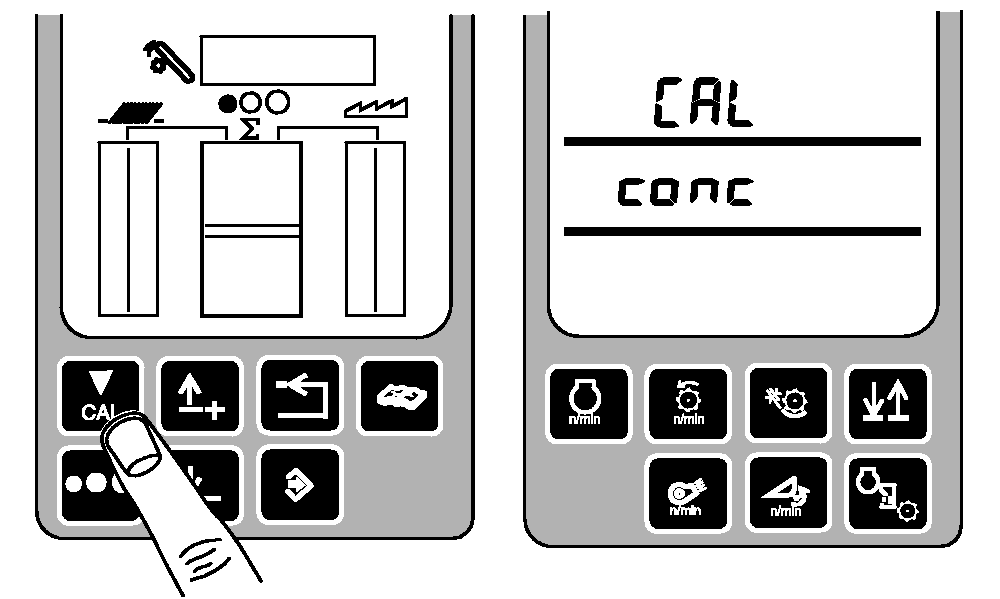

Press the calibration switch. CAL and conc will appear on the triple display tachometer.

H68151

MH81805,0000887 -19-02MAY05-3/11

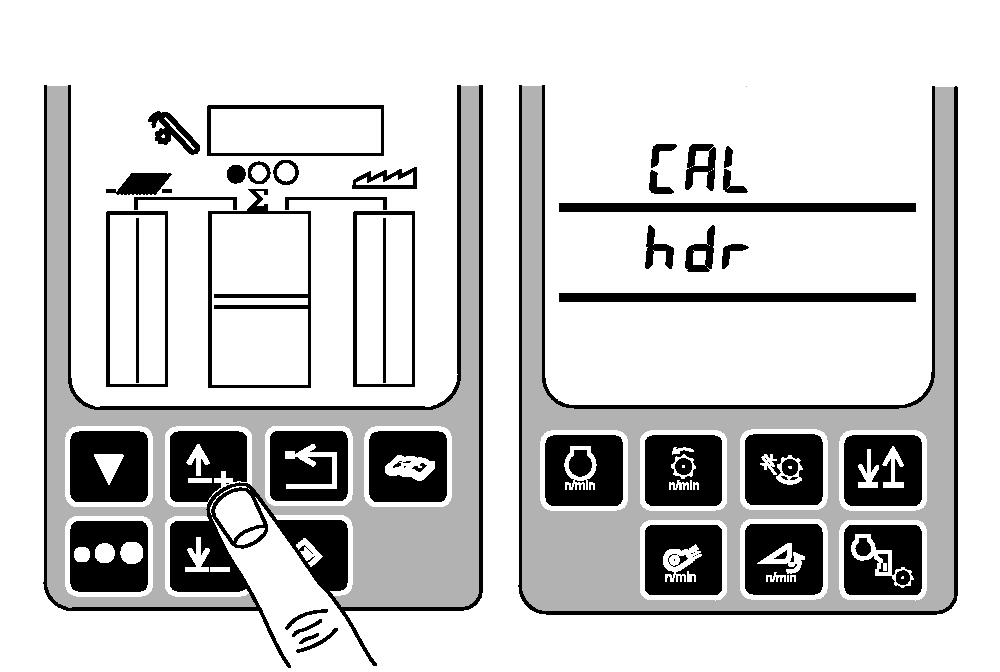

Press the up or down arrow keys until CAL and hdr appears on the triple display tachometer.

H68159

MH81805,0000887 -19-02MAY05-4/11

NOTE: If Hydraflex platform is equipped with auxiliary sensors H-dn will appear.

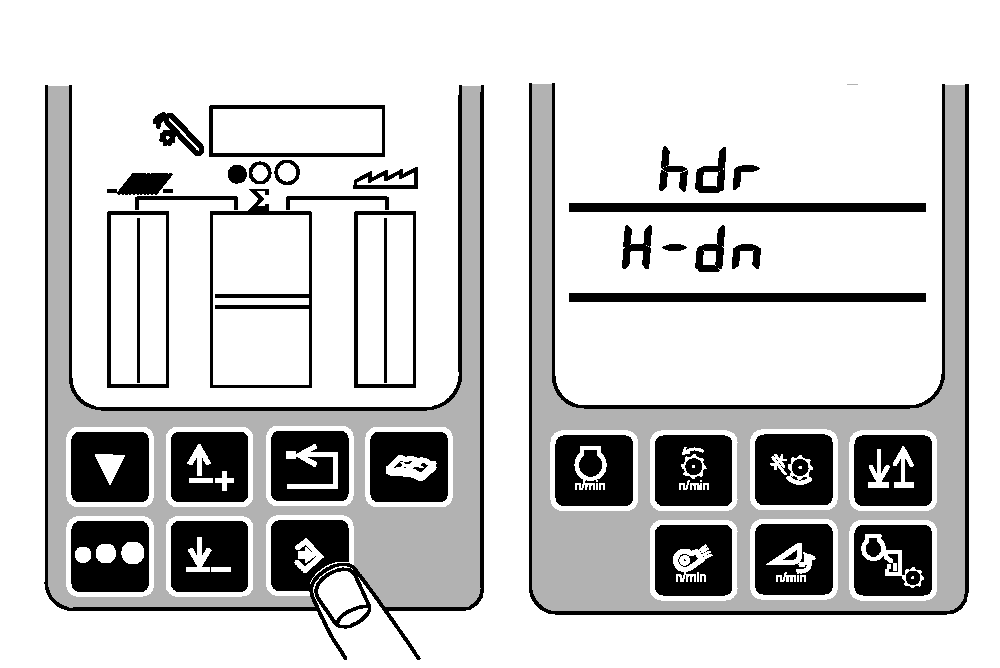

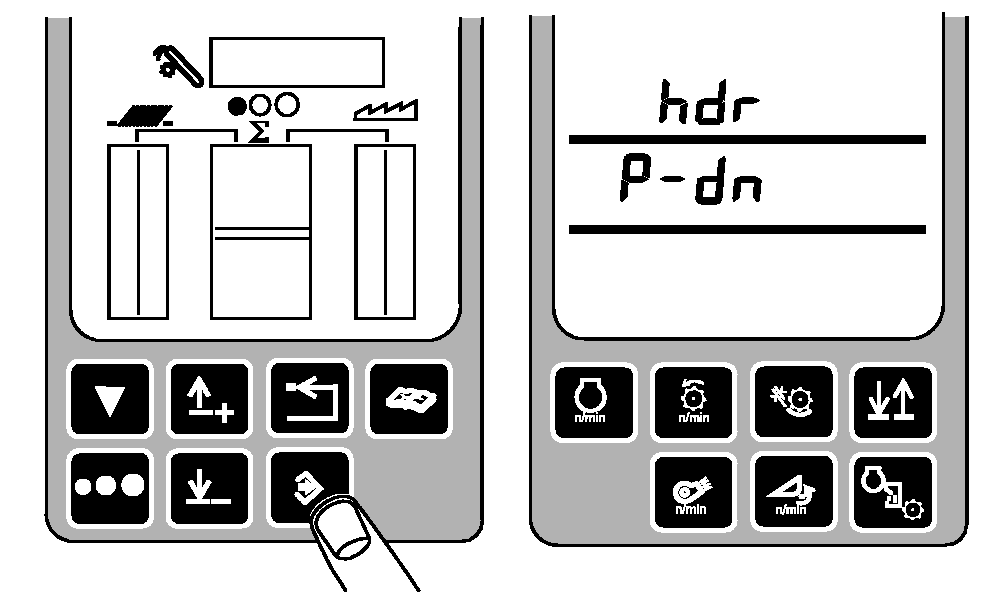

Press the enter switch to access the header calibration mode. hdr and H-dn (P-dn will appear for a HYDRAFLEX head that has pressure in it) will now appear on the triple display tachometer.

H68160
H71305

MH81805,0000887 -19-02MAY05-5/11

Establish sensor minimum setting.

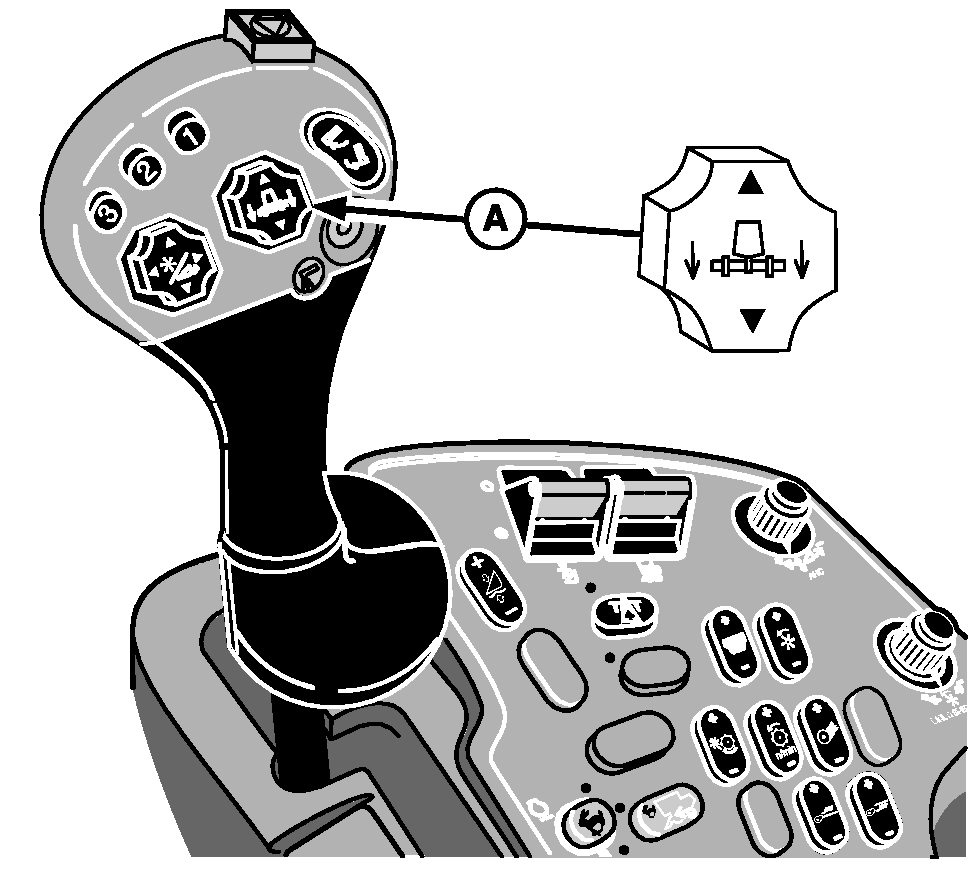

Lower and tilt the header with the header raise/lower and tilt switch (A) until it rests flat on the ground.


A-Header Raise/Lower Switch

H74747

MH81805,0000887 -19-02MAY05-6/11

If H-dn is displayed, go to next step.

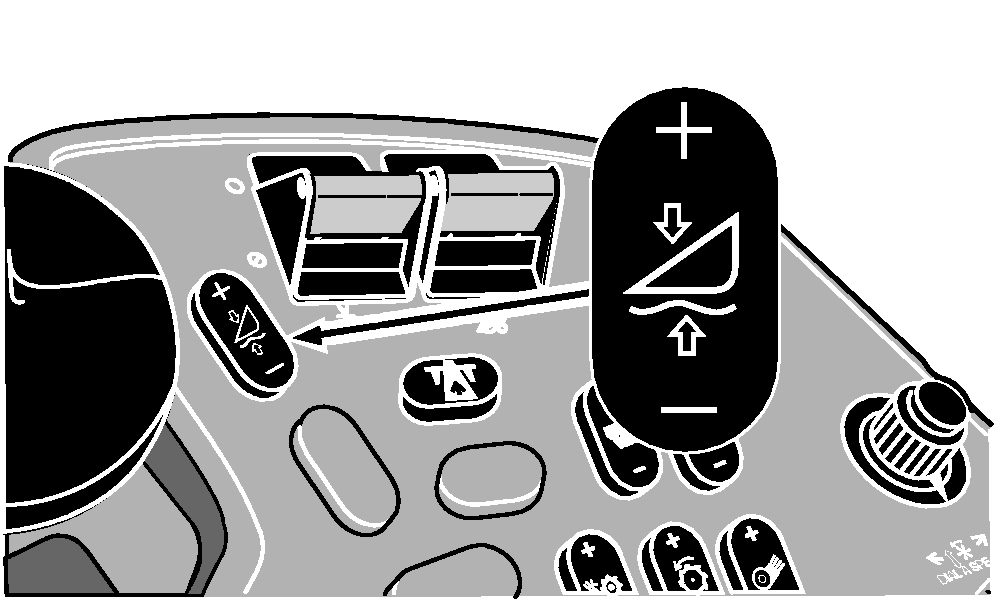

If P-dn is displayed, decrease HYDRAFLEX pressure with the HYDRAFLEX button until pressure is below 1000 psi (6900 kPa) (69 bar).

HYDRAFLEX pressure will be displayed as the pressure is lowered.

H-dn will appear when pressure is below 1000 psi (6900 kPa) (69 bar).

H75742

MH81805,0000887 -19-02MAY05-7/11

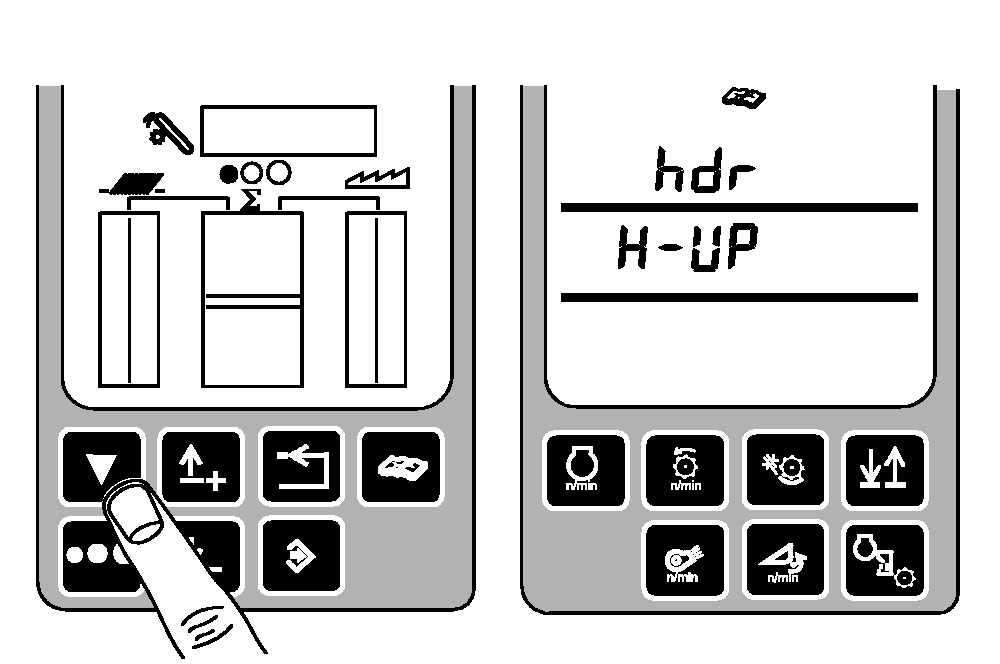

Press the calibration switch. hdr and H-UP will be displayed on the triple display tachometer.

H68161

MH81805,0000887 -19-02MAY05-8/11

Establish sensor maximum setting.

Raise the header completely with the header raise/lower switch (A).


A-Header Raise/Lower Switch

H74747

MH81805,0000887 -19-02MAY05-9/11

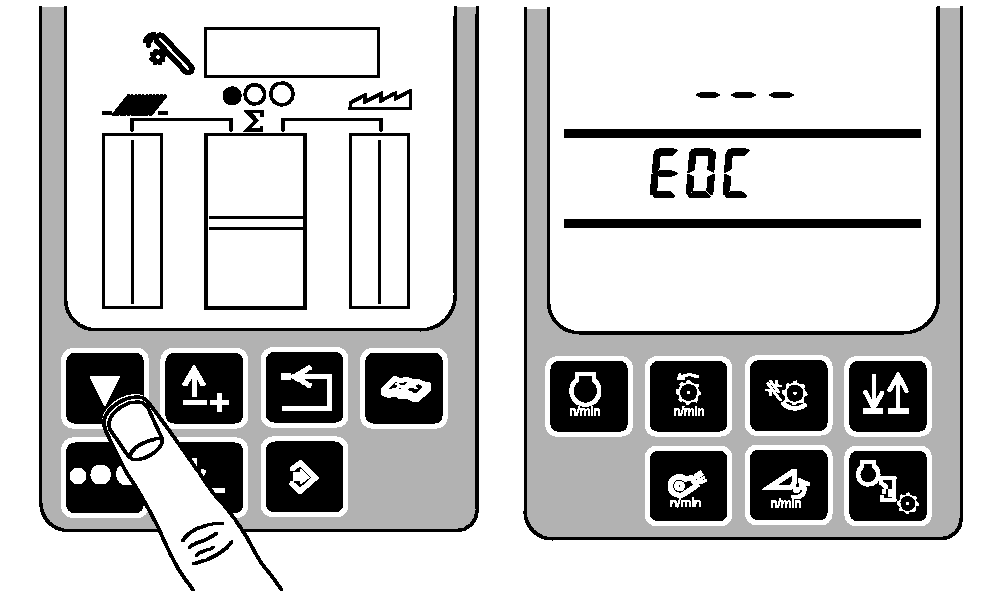

Press the calibration switch. EOC will be displayed on the triple display tachometer.

H68162

MH81805,0000887 -19-02MAY05-10/11

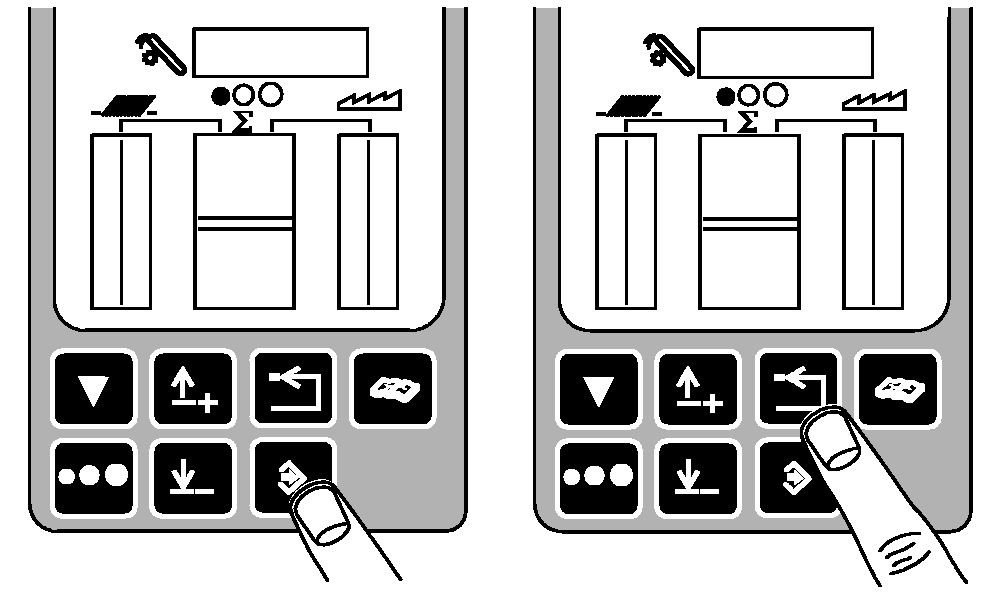

Press the enter switch to save the calibration values and return to normal operation or press the back arrow switch to abort the calibration (and not save values).

Press the back arrow switch to return to normal operation.

H68163

MH81805,0000887 -19-02MAY05-11/11
