NOTE: Viewable machine readings only.

• Moisture ¹ (A)
• Yield ¹ (B)
• Crop (C)
• Machine Settings
  • Threshing Speed (D)
  • Threshing Clearance (E)
  • Fan Speed (F)
  • Chaffer Clearance (G)
  • Sieve Clearance (H)
• Engine Hours (I)
• Separator Hours (J)
• Current Time (K)
• Harvest Smart Feed Rate Status (OFF, Smart or Capacity) ² (L)
• Manual Recording (ON/OFF) (M)

NOTE: Shows detailed machine settings, allowing operator to reconfigure page and providing the ability to monitor six items at once. Items in list will vary depending upon machine configuration.

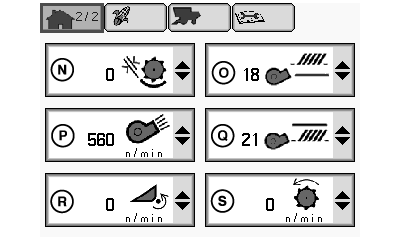

The following six machine readings are illustrated.

• Threshing Clearance (N)
• Sieve Clearance (O)
• Cleaning Fan Speed (P)
• Chaffer Clearance (Q)
• Backshaft Speed (R)
• Threshing Speed (S)

These additional machine readings are available, but are not illustrated.

• Moisture
• Yield
• Distance Counter
• Area Counter
• CommandTouch ™ Multi-Speed Feeder House Gear (If Equipped)
• Engine Speed
• Deck Plate Spacing
• Reel Speed
• Draper Speed
• Spreader Speeds

CommandTouch is a trademark of Deere & Company

¹If Equipped with Moisture Sensor.

²If Equipped with Harvest Smart Feed Rate.

OUO6075,00005C4 -19-22AUG07-1/1
