Diagnostics and Calibration Pages
H87476
H87477
Page 1 of 2

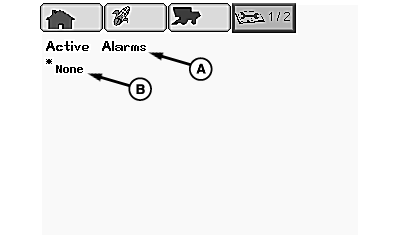

Active Alarms (A):

  • None (B) - appears when no alarms are present at this time.

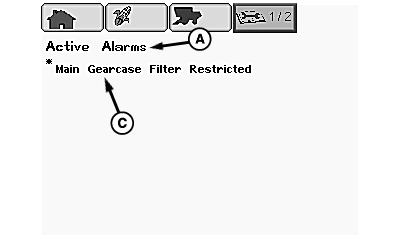

  • Alarm Name(s) (C) - appears with the alarm name(s) when a problem is detected in the machine system.
Page 2 of 2

NOTE: Calibrations are done using instructions shown on CommandCenter display. Operator selects which calibration and highlights calibrate button, and is guided through procedure.

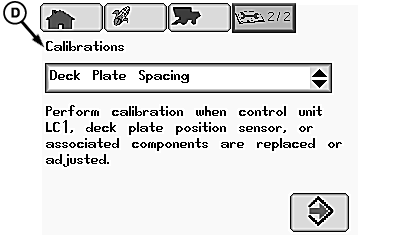

Calibrations (D):

  • Refer to When to Calibrate in Calibration Procedures section for listing of calibrations.
H87478

OUO6075,00005D2 -19-22AUG07-1/1
