Feeder House Rate/Sensitivity Adjust Switch (Black)

Feeder house rate/sensitivity adjust switch (A) allows operator to compensates for uneven ground and controls horizontal and vertical positions of header. The system continuously compares the preset position and actual position, thus keeping header in desired working position.

1. Verify road transport disconnect switch (B) is in field position.

NOTE: Pressing confirm switch makes feeder house rate/sensitivity icons disappear on CommandCenter.

2. Select desired feeder house adjust setting:

a. Press feeder house rate/sensitivity adjust switch once to select manual raise/lower speed.

b. Press feeder house rate/sensitivity adjust switch twice to select header height sensitivity adjust.

3. Indicator light (C) will come on indicating that desired choice can be adjusted.

4. Turn selection dial (D) towards plus (+) symbol to increase response rate/sensitivity or towards minus (-) symbol to decrease response rate/sensitivity.

5. CommandCenter display will show operator adjustment setting.

NOTE: For more detailed information, refer to Description of Automatic Header Height Control System, in CommandTouch Cab Cornerpost section.

H86963

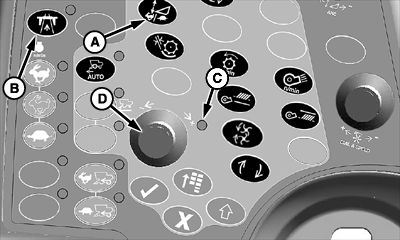

A-Feeder House Rate/Sensitivity Adjust Switch
B-Road Transport Disconnect Switch
C-Indicator Light
D-Selection Dial
