Gearshift Lever

IMPORTANT: Stop machine and move multifunction control handle to neutral before shifting gears.

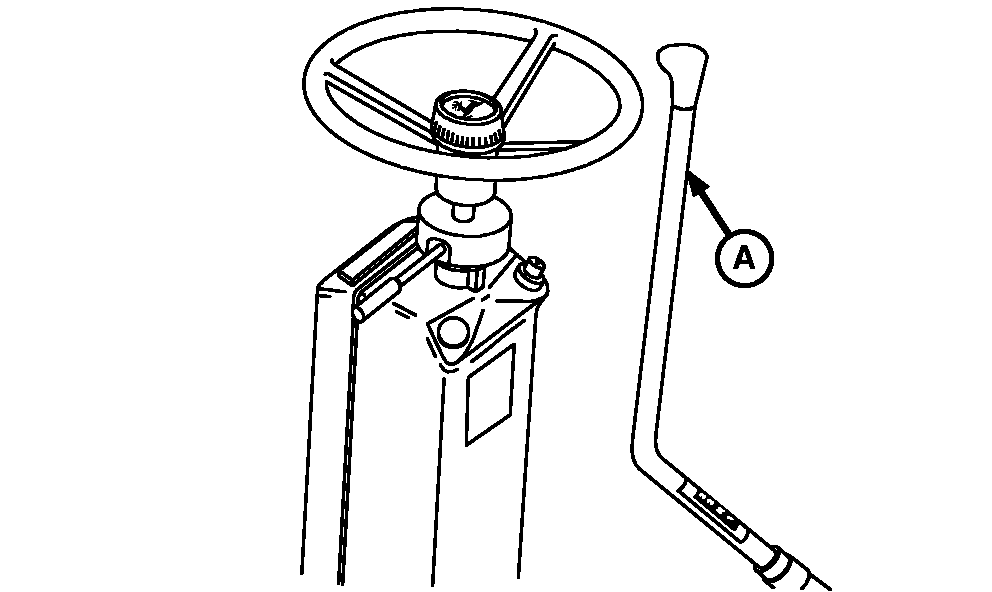

When shifting gearshift lever (A) the shift pattern is a straight line with detents for 1, 2 and 3. Less resistance is felt for neutral between 1st and 2nd gears.

A-Gearshift Lever

OUO6075,000063B -19-22MAR07-1/1
