Field Lights

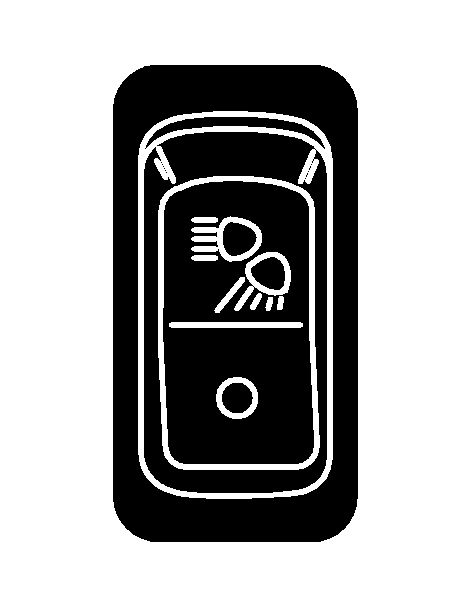

Field switch controls the warning lights (A), tail lights (B) and field lights (C).

Field switch provides the operator with area lighting for operation at night and during low light conditions.

Field switch is a two position switch.

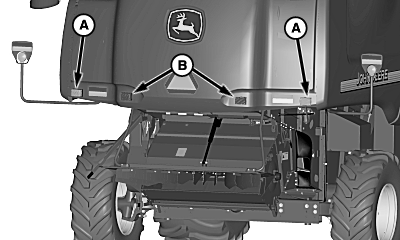

A-Warning Lights
B-Tail Lights

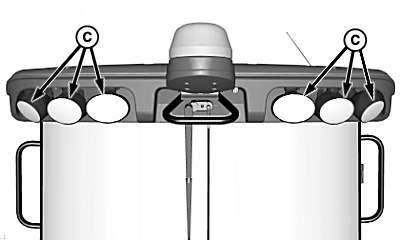

C-Field Lights

OUO6075,0000644 -19-20MAR07-1/2

Field switch is also used to control the grain tank light (A), side finder light (B) (with turn signal lever), and unloading auger light (C).

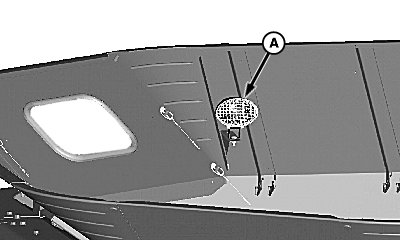

A-Grain Tank Light

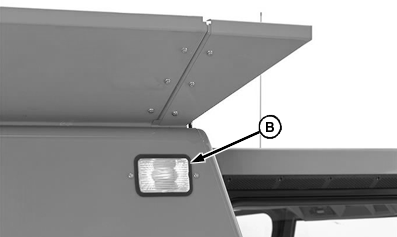

B-Side Finder Light

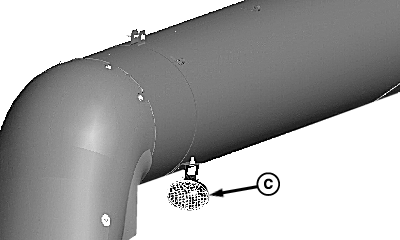

C-Unloading Auger Light

OUO6075,0000644 -19-20MAR07-2/2
