CAUTION: Avoid motorist confusion. Do not operate service lights when transporting on public roadways.

NOTE: For lighting delay feature, see Lighting Delay/Timeout in this section for further information.

Additional service lights are available for better visibility of the separator area.

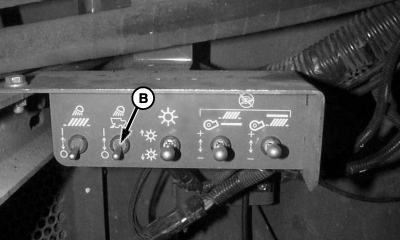

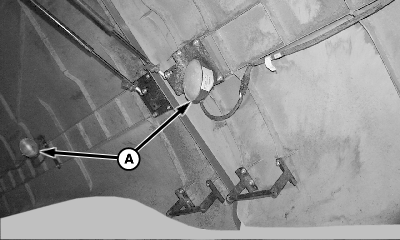

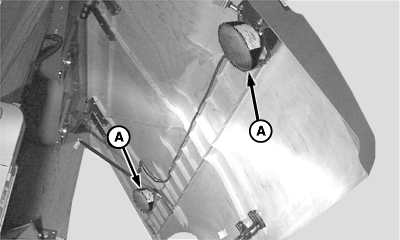

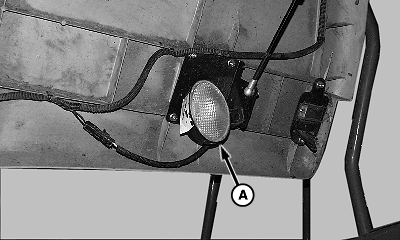

Service lights (A) are provided on both sides of the machine under the gull wing doors. Service lights ON/OFF switch (B) is located above left-hand side separator shield.

OUO6075,0000648 -19-18DEC07-1/1
