Chaffer or Sieve Indicator-Calibration

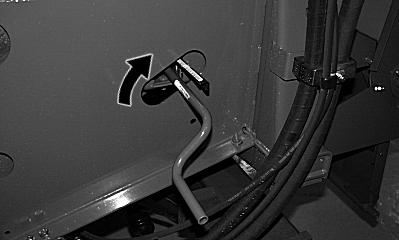

Using adjusting tool to close chaffer completely.

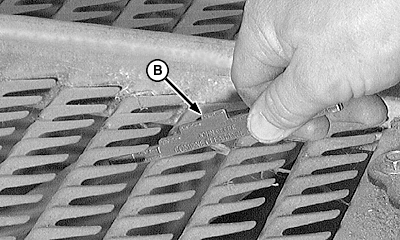

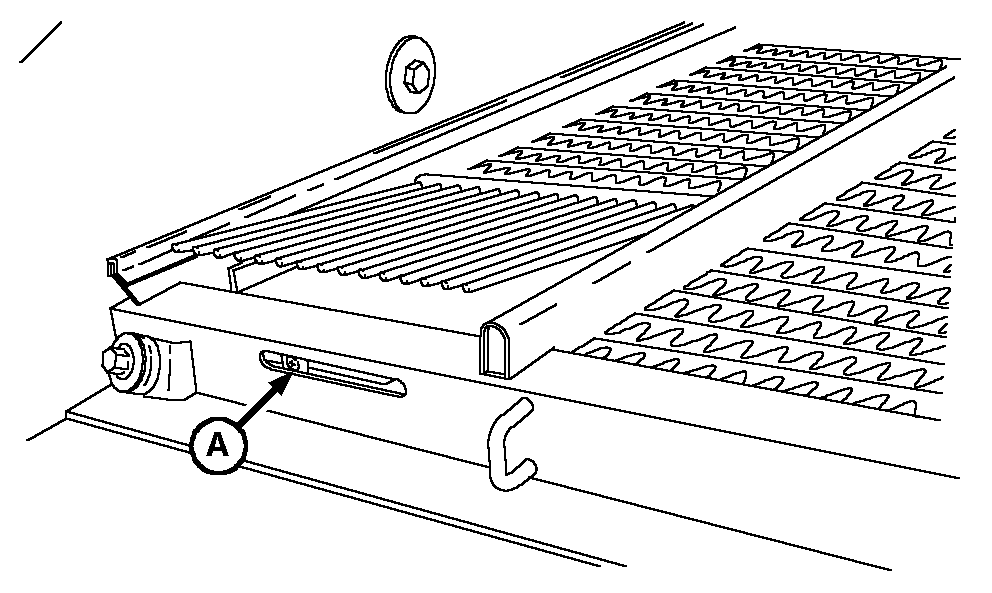

Loosen set screw (A) at left-hand rear corner of chaffer (opening in chaffer frame). Open chaffer slowly until opening measures approximately 8 mm (5/16 in.) with combine clearance gauge (B).

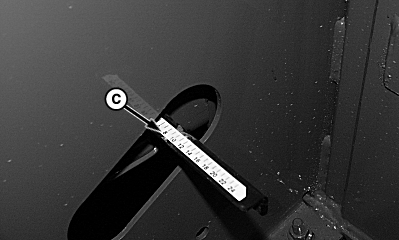

Slide opening gauge in or out until gauge reads 8 mm (5/16 in) (C) from side sheet. Tighten set screw at the rear of chaffer.

This procedure to also used to calibrate the sieve.

A-Set Screw
B-Clearance Gauge
C-Gauge 8 mm (5/16 in.)

OUO6075,000076F -19-24APR07-1/1
