Unloading Auger Swing Cylinder-Adjusting (High Unload Rate Grain Tank)

causym CAUTION: Shut OFF engine, set parking brake and remove key.

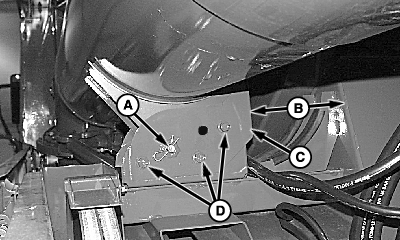

1. Swing unloading auger to storage or transport position and keep pivoting cradle pinned (A).

2. Measure distance (B) between back edge of cradle support bracket (C) and tubular structure of grain tank frame to specification.

Specification

Back Face of Cradle Support Bracket to Tank Structure -Distance 119 mm (4.69 in.)

NOTE: Make sure to square lower edge of cradle support bracket with grain tank frame.

3. If gap is incorrect, loosen but do not remove cap screws (D) and adjust to proper specification and tighten cap screws.

H76212


A-Pin
B-Measured Distance
C-Cradle Support Bracket
D-Cap Screws

OUO6075,00007CC -19-23APR07-1/3

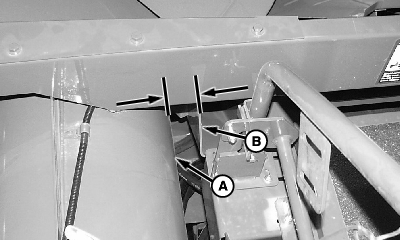

4. Measure distance from unloading auger edge (A) to tubular structure on grain tank frame (B). Distance should be set to specification.

Specification

Unloading Auger Edge to Grain Tank Structure -Distance 73 mm (2.87 in.)


A-Unloading Auger Edge
B-Grain Tank Frame

H80949

OUO6075,00007CC -19-23APR07-2/3

5. If gap is incorrect, adjust cylinder rod end (A). Loosen jam nut (B) and set screw (C). Screw cylinder rod in or out to obtain correct gap.

6. Tighten jam nut and set screw.


A-Cylinder Rod
B-Jam Nut
C-Set Screw

H66021

OUO6075,00007CC -19-23APR07-3/3
