Lubrication Decal Locations

Lubrication decals (A) show the different locations of grease points around the machine. Follow lubrication times provided on decals and refer to hour intervals listed in this section for further information.


A-Lubrication Decals

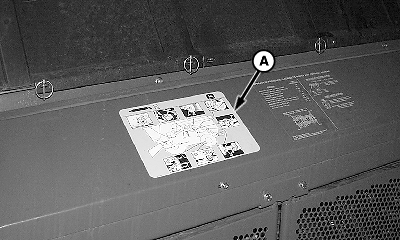

H80953

Left-Hand Lubrication Decal

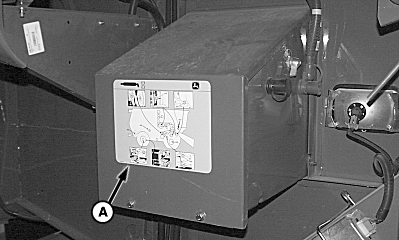

H83439

Right-Hand Rear Lubrication Decal

OUO6075,0000851 -19-23APR07-1/1
