Feeder House Drum-Height Adjustment

causym CAUTION: Raise feeder house, lower safety stop, shut OFF engine, set parking brake and remove key.

Open feeder house side shields.

Pull and hold pin (A) while rotating handle (B) to small grain position, both sides.

In small grain crops, loosen nut (C and D) on both sides and rotate cam (E) until an equal distance and desired slat to floor clearance is achieved. Tighten nuts to specification.

Specification

Drum Height Adjusting Nut -Torque 87 N·m (64 lb-ft)

Place handle in desired crop position.


A-Pin
B-Drum Height Handle
C-Nut
D-Nut
E-Cam

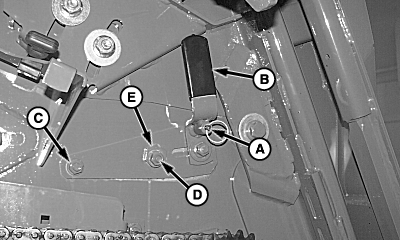

H82594

Corn Only Position

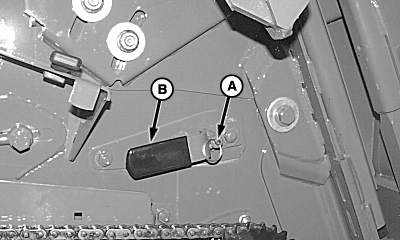

H82595

Small Grain Position
