Single Point Latching-Adjusting

NOTE: Contour-Master Feeder House: Adjustments should only be made to cable at multi-coupler handle.

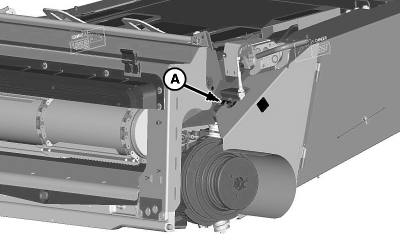

Open left-hand feeder house shield (A).

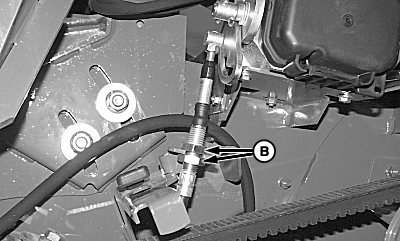

Loosen cable jam nuts (B).

IMPORTANT: Verify handle is against stop on multi-coupler. Failure to verify handle is against stop will result in inaccurate pin dimensions and could result in header falling off while harvesting or transporting.

Rest multi-coupler handle against stop.

A-Shield
B-Jam Nuts

OUO6075,00008BC -19-23APR07-1/4

NOTE: Moving cable "up" in bracket pulls pin farther in.

Moving cable "down" in bracket pushes pin farther out.

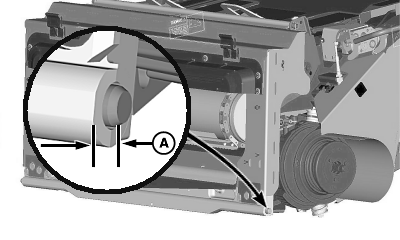

Adjust cable in bracket as needed for proper pin adjustment:

• Left-hand latching pin should be flush to +/- 2 mm (A).

A-Dimension

OUO6075,00008BC -19-23APR07-2/4

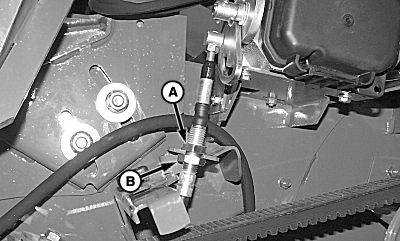

Hold bottom jam nut (B) and tighten top jam nut (A).

A-Top Jam Nut
B-Bottom Jam Nut

OUO6075,00008BC -19-23APR07-3/4

IMPORTANT: Failure to verify pins are set to specified dimensions could result in header falling off while harvesting or transporting.

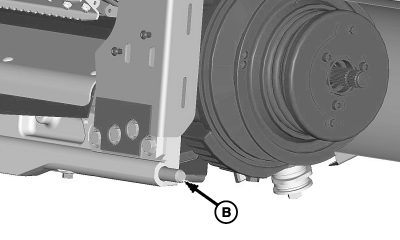

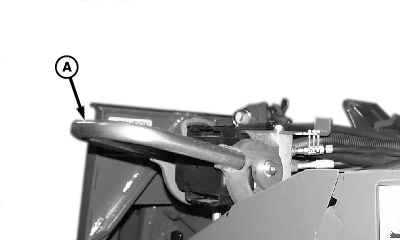

Fully lower multi-coupler handle (A) and verify pins (B) (both sides) are set to specification. Readjust if not set to specification.

Specification

A-Multi-Coupler Handle
B-Pins

OUO6075,00008BC -19-23APR07-4/4
