IMPORTANT:
Service times are for average conditions. Service more often if machine is used in extreme conditions.

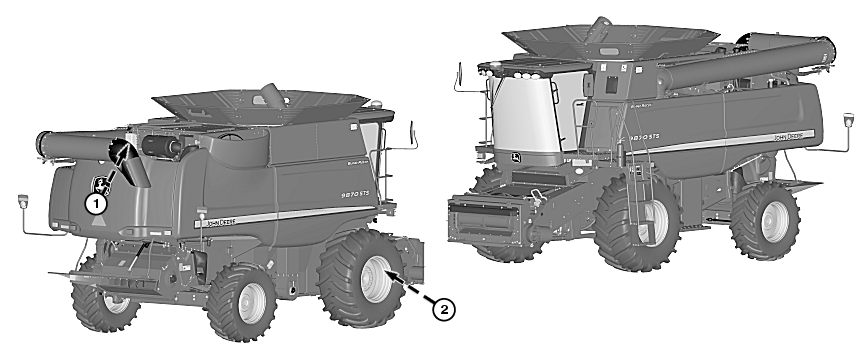

1.

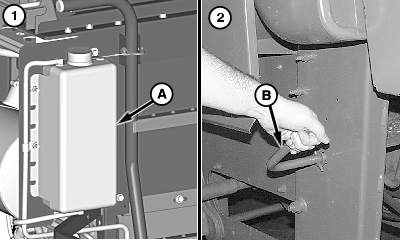

Recovery Tank - Check engine coolant level in recovery tank (A) with engine cold. Level must be up to "COLD" mark.
2.
Stone trap - At end of each day, dump stone trap with lever (B).
A-Recovery Tank
B-Lever
|
