4.
Chopper/Unloading Driveshaft Bearing - Rotate sheave to access fitting on bottom of sheave groove and grease fitting.
IMPORTANT:
Remove pipe plug and install grease fitting. Pump 40 to 45 shots of grease into fitting. DO NOT OVER GREASE. Remove grease fitting and reinstall pipe plug.
5.

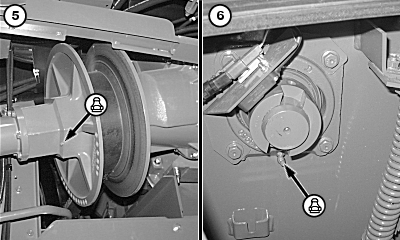

Variable Speed Driver Sheave - Close sheaves (high speed) before greasing at pipe plug in outer
|
sheave hub. Rotate sheave for pipe plug access. Cycle cylinder speed to distribute grease if operated at high speed all the time.
6.
Feed Accelerator Bearing (Left Side) - Grease fitting.
7.

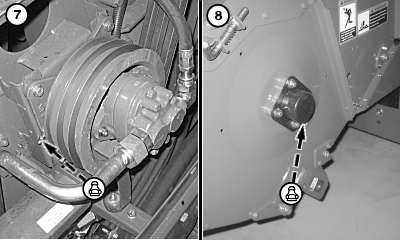

Header/Reel Drive Pump Sheave Bearing - Grease fitting.
8.
Chopper Rotor Bearings - Grease fitting (both sides).
|
