Every 400 Hours
H86855
H86803
H86804
H86805


A-Hydrostatic Charge Filter
B-Hydraulic/Hydrostatic Filter
C-Plug
D-Dipstick
E-Reservoir Cap
F-Engine Power Take-Off Gearcase Filter

NOTE: It is not necessary to drain system when installing filters.

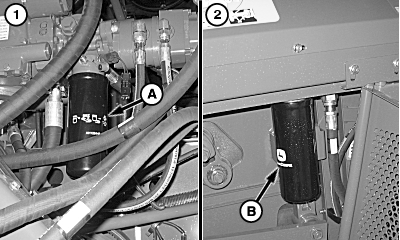

1. Hydrostatic Charge Filter - Replace hydrostatic charge filter (A). Coat seal on new filter with oil. Hand tighten, then tighten 1/2 turn more.

OUO6075,00008E2 -19-17DEC07-1/2

2. Hydraulic/Hydrostatic Filter - Replace hydraulic/hydrostatic filter (B). Coat seal on new filter with oil. Hand tighten, then tighten 1/2 turn more.

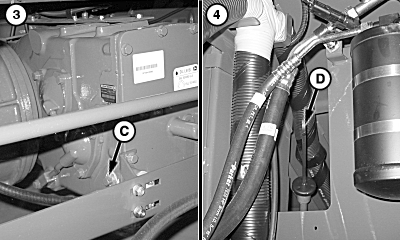

3. Transmission Oil - Remove plug (C) and check oil level. Add oil as needed to within 12 mm (1/2 in.) of bottom of hole.

4. Primary Countershaft Gearcase Oil - Check primary countershaft gearcase oil level with dipstick (D). Add oil as needed.

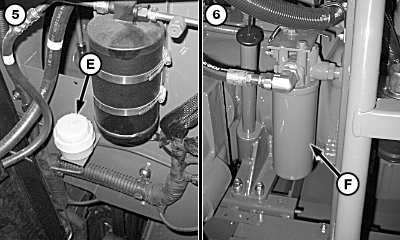

5. Brake Fluid - Check brake fluid level. Look through reservoir cap (E). Add brake fluid to 6 mm (1/4 in.) from top. Do not let dirt get into brake fluid.

6. Engine Power Take-Off Gearcase Filter - Replace engine gearcase filter (F). Coat seal on new filter with oil. Hand tighten, then tighten 1/2 turn more.

OUO6075,00008E2 -19-17DEC07-2/2
