A-Hydraulic Hose
B-Cap
C-Sight Glass
D-Drain Plug

E-Fill Plug
F-Check Hole
G-Drain Plugs
H-Dipstick

I-Protective Cap
J-Drain Valve
K-Dipstick
L-Cap

M-Dipstick
N-Tube
O-Block
P-Check Plug

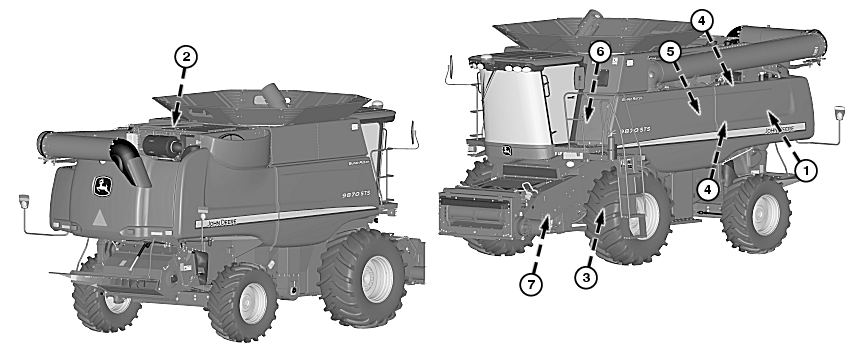

NOTE: Approximately 35 L (9.3 gal) will drain from hydraulic reservoir when hose is removed.

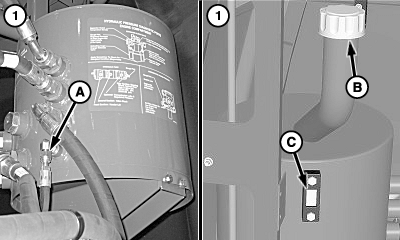

1. Hydraulic/Hydrostatic Reservoir Oil - Remove hydraulic hose (A) to drain. Clean screen and cap (B) and refill reservoir. Oil level must show in middle on sight glass (C).

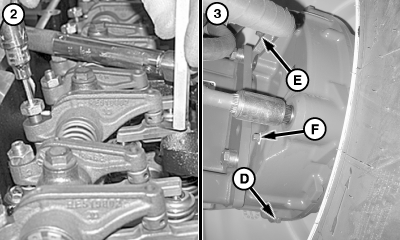

2. Engine Valve Back Lash - Have engine valve back lash checked and adjusted if necessary, by your John Deere dealer.

3. Final Drives Oil (both sides) - Remove drain plug (D) to drain. Remove fill plug (E) to refill until oil level is within 12 mm (1/2 in.) of bottom check hole (F).

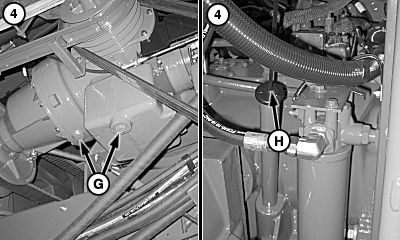

4. Engine Power Take-Off Gearcase Oil - Drain at plugs (G). Refill and check oil level at dipstick (H).

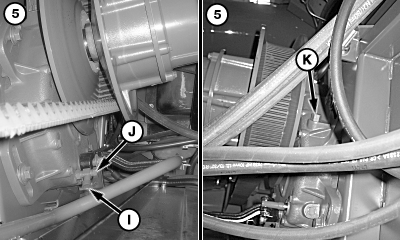

5. Separator Drive Oil - Remove protective cap (I) and attach hose to drain valve (J). Open valve to drain. Refill at dipstick (K) as needed.

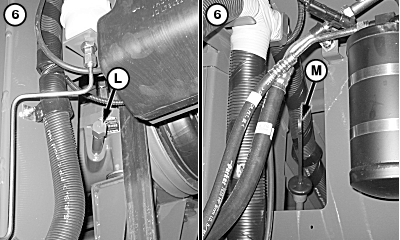

6. Primary Countershaft Gearcase Oil - Drain at cap (L) and refill at dipstick (M). Oil level must show on knurled part of dipstick.

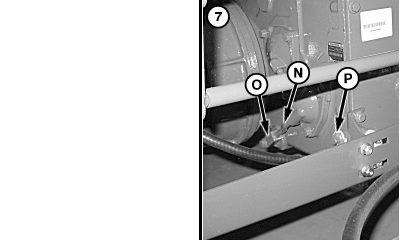

7. Transmission Oil - Slide tube (N) out of block (O). Remove block to drain. Remove check plug (P) and refill to within 12 mm (1/2 in.) of hole.
