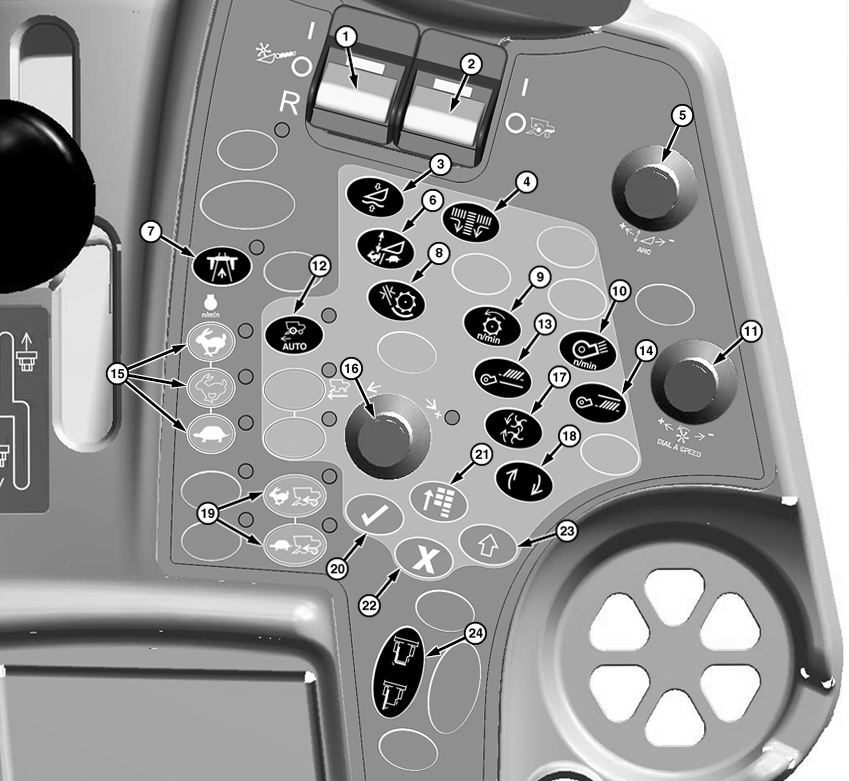

1-Header Engage and Feeder House Reverser Switch
2-Separator Engage Switch
3-Cutterbar Pressure Adjust Switch
4-Draper Belt Speed Adjust Switch
5-Header Height/HydraFlex™ Pressure Control Dial
6-Feeder House Rate/Sensitivity Adjust Switch
|
7-Road Transport Disconnect Switch
8-Threshing Clearance Adjust Switch
9-Threshing Speed Adjust Switch
10-Cleaning Fan Speed Adjust Switch
11-Dial-A-Speed™ Dial
12-Harvest Smart™ Feed Rate Enable Switch (Optional)
|
13-Chaffer Adjust Switch (Optional)
14-Sieve Adjust Switch (Optional)
15-Engine Speed Switches
16-Selection Dial
17-Spreader Speed Adjust Switch
18-Not Used
|
19-Four Wheel Drive Switches (Optional)
20-Confirm Switch
21-Main Menu Switch
22-Cancel Switch
23-Display Select Switch
24-Folding Auger Switch (Optional)
|
