Informational Display Warnings

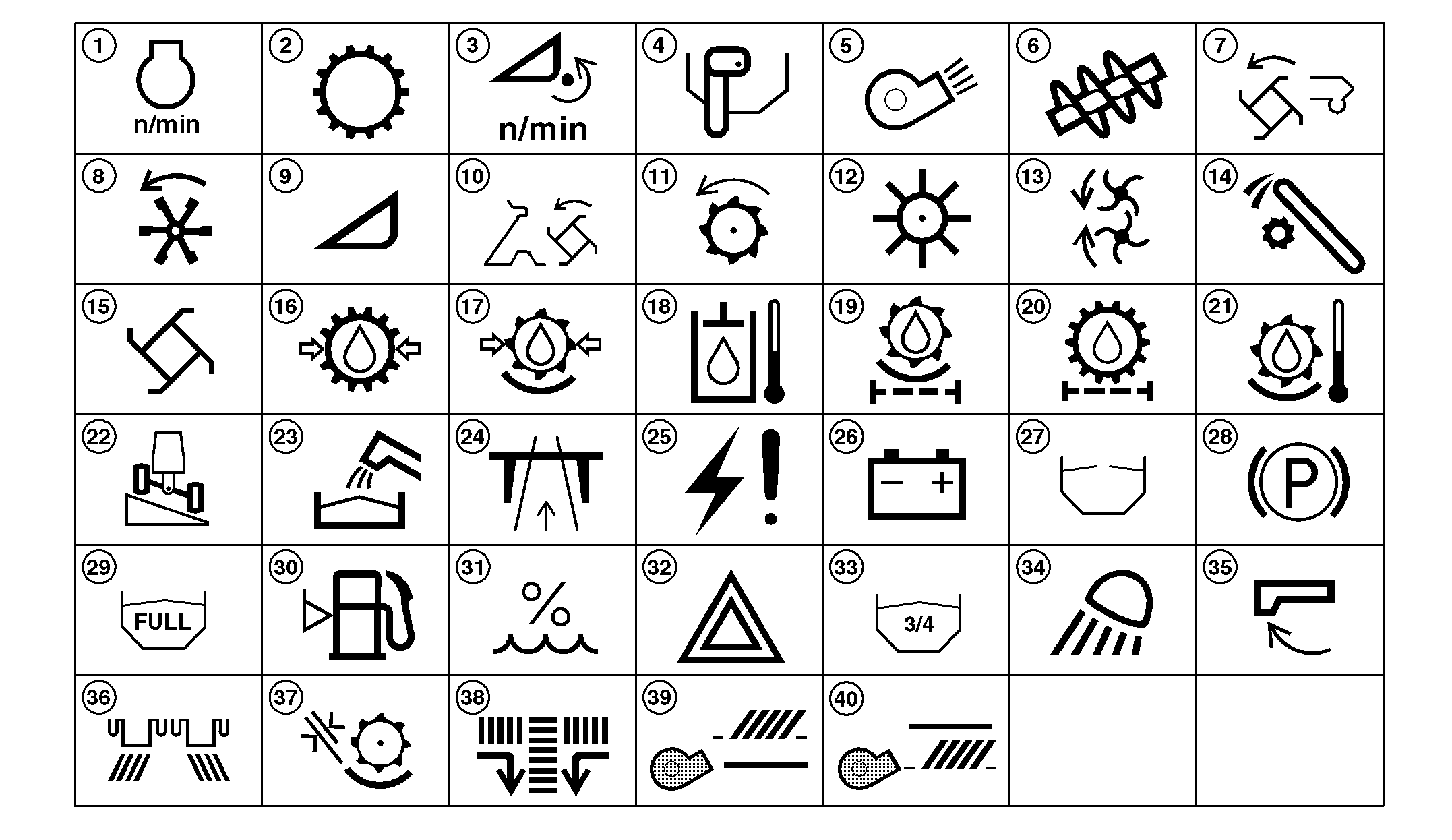

H88005

NOTE: Following icons appear along with a brief description on the CommandCenter display.

See table following icons for description and icon that accompany the alarm.

Non Alarm Screens:
Alarm Name Severity Icon Color Repeat Rate Machine Information/Solution
Startup Splash Screen Yellow None Displays when machine is first started.
Setpoint Adjust Screen Yellow None Allows operator to adjust various machine settings.
Service Hours Screen Gray None Displays every 50 hours to alert operator to service machine.
Engine Preheat Screen Gray None Displays when glow plugs are activated and gives countdown to when machine can be started.
Folding Unloading Auger Screen Gray None Alerts operator to position of power folding auger.



Diagnostic Trouble Codes Screen:
Alarm Name Severity Icon Color Repeat Rate Machine Information/Solution
Stop Red Continuous Alerts operator to stop engine at once and correct problem.
Service Warning Yellow 60 Minutes Alerts operator to service or correct problems. Stop engine as required.
Information Gray No Repeat Alerts operator to be aware of condition.



OUO6075,0000A2E -19-13JUL07-1/13

Low Speed Alarms:
Icon Reference Number Alarm Name Severity Icon Color Repeat Rate Machine Information/Solution
1 Engine Speed Low Red Continuous Alerts operator that engine speed has slowed due to harvesting conditions. Reduce harvesting speed to reduce engine load. If message still displays, see your John Deere dealer.
2 5SPD FH Drive Speed Zero Yellow 60 Minutes Alerts operator that no movement is detected for feeder house drives. Stop engine, inspect drives and speed sensor. Engage separator and header switches. If message still displays, see your John Deere dealer.
3 Backshaft Speed Zero Yellow 60 Minutes Alerts operator that no movement is detected for backshaft. Stop engine, inspect drives and speed sensor. Engage separator and header switches. If message still displays, see your John Deere dealer.
9 Belt Pickup Speed Zero Yellow 60 Minutes Alerts operator that no movement is detected for belt pickup. Stop engine, inspect drives and speed sensor. Engage separator and header switches. If message still displays, see your John Deere dealer.
4 Clean Grain Elevator Speed Zero Yellow 10 Minutes Alerts operator that clean grain elevator speed is less than 20 rpm. Stop engine, inspect drives and speed sensor. Engage separator and header switches. If message still displays, see your John Deere dealer.
5 Cleaning Fan Speed Zero Yellow 10 Minutes Alerts operator that cleaning fan speed is less than 20 rpm. Stop engine, inspect drives and speed sensor. Engage separator and header switches. If message still displays, see your John Deere dealer.
6 Conveying Auger Speed Zero Yellow 10 Minutes Alerts operator that conveyor auger speed is less than 20 rpm. Stop engine, inspect drives and speed sensor. Engage separator and header switches. If message still displays, see your John Deere dealer.
7 Discharge Beater Speed Zero Yellow 10 Minutes Alerts operator that discharge beater speed is less than 20 rpm. Stop engine, inspect drives and speed sensor. Engage separator and header switches. If message still displays, see your John Deere dealer.
38 Draper Speed Zero Yellow 60 Minutes Alerts operator that draper speed is less than 20 rpm. Stop engine, inspect drives and speed sensor. Engage separator and header switches. If message still displays, see your John Deere dealer.
8 Reel Speed Zero Yellow 60 Minutes Alerts operator that reel speed is less than 20 rpm. Stop engine, inspect drives and speed sensor. Engage separator and header switches. If message still displays, see your John Deere dealer.
9 Chopping Corn Head Speed Zero Yellow 60 Minutes Alerts operator that chopping corn head speed is less than 20 rpm. Stop engine, inspect drives and speed sensor. Engage separator and header switches. If message still displays, see your John Deere dealer.



OUO6075,0000A2E -19-13JUL07-2/13

Low Speed Alarms:
Icon Reference Number Alarm Name Severity Icon Color Repeat Rate Machine Information/Solution
10 Feed Accelerator Speed Zero Yellow 10 Minutes Alerts operator that feed accelerator speed is less than 20 rpm. Stop engine, inspect drives and speed sensor. Engage separator and header switches. If message still displays, see your John Deere dealer.
11 Separator Speed Zero Yellow 10 Minutes Alerts operator that separator speed is less than 20 rpm. Stop engine, inspect drives and speed sensor. Engage separator and header switches. If message still displays, see your John Deere dealer.
12 Straw Chopper Speed Zero Yellow 10 Minutes Alerts operator that straw chopper speed is less than 20 rpm. Stop engine, inspect drives and speed sensor. Engage separator and header switches. If message still displays, see your John Deere dealer.
13 Straw Spreader Speed Zero Yellow 10 Minutes Alerts operator that straw spreader speed is less than 20 rpm. Stop engine, inspect drives and speed sensor. Engage separator and header switches. If message still displays, see your John Deere dealer.
14 Tailings Elevator Speed Zero Yellow 10 Minutes Alerts operator that tailings elevator speed is less than 20 rpm. Stop engine, inspect drives and speed sensor. Engage separator and header switches. If message still displays, see your John Deere dealer.
11 Threshing Speed Zero Yellow 10 Minutes Alerts operator that threshing speed is less than 20 rpm. Stop engine, inspect drives and speed sensor. Engage separator and header switches. If message still displays, see your John Deere dealer.
2 5SPD FH Drive Speed Low Yellow 30 Seconds Alerts operator that feeder house drive speed has slowed to 85% of normal speed. Stop engine, check for plugging, inspect drives and reduce harvesting speed. If message still displays, see your John Deere dealer.
4 Clean Grain Elevator Speed Low Yellow 30 Seconds Alerts operator that clean grain elevator speed has slowed to 85% of normal speed. Stop engine, check for plugging, inspect drives and reduce harvesting speed. If message still displays, see your John Deere dealer.
5 Cleaning Fan Speed Low Yellow 30 Seconds Alerts operator that cleaning fan speed has slowed to 85% of normal speed. Stop engine, check for plugging, inspect drives and reduce harvesting speed. If message still displays, see your John Deere dealer.
6 Conveying Auger Speed Low Yellow 30 Seconds Alerts operator that conveyor auger speed has slowed to 85% of normal speed. Stop engine, check for plugging, inspect drives and reduce harvesting speed. If message still displays, see your John Deere dealer.
7 Discharge Beater Speed Low Yellow 30 Seconds Alerts operator that discharge beater speed has slowed to 85% of normal speed. Stop engine, check for plugging, inspect drives and reduce harvesting speed. If message still displays, see your John Deere dealer.



OUO6075,0000A2E -19-13JUL07-3/13

Low Speed Alarms:
Icon Reference Number Alarm Name Severity Icon Color Repeat Rate Machine Information/Solution
10 Feed Accelerator Speed Low Yellow 30 Seconds Alerts operator that feed accelerator speed has slowed to 85% of normal speed. Stop engine, check for plugging, inspect drives and reduce harvesting speed. If message still displays, see your John Deere dealer.
11 Separator Speed Low Yellow 30 Seconds Alerts operator that separator speed has slowed to 85% of normal speed. Stop engine, check for plugging, inspect drives and reduce harvesting speed. If message still displays, see your John Deere dealer.
12 Straw Chopper Speed Low Yellow 30 Seconds Alerts operator that straw chopper speed has slowed to 85% of normal speed. Stop engine, check for plugging, inspect drives and reduce harvesting speed. If message still displays, see your John Deere dealer.
13 Straw Spreader Speed Low Yellow 30 Seconds Alerts operator that straw spreader speed has slowed to 85% of normal speed. Stop engine, check for plugging, inspect drives and reduce harvesting speed. If message still displays, see your John Deere dealer.
14 Tailings Elevator Speed Low Yellow 30 Seconds Alerts operator that tailings elevator speed has slowed to 85% of normal speed. Stop engine, check for plugging, inspect drives and reduce harvesting speed. If message still displays, see your John Deere dealer.
11 Threshing Speed Low Yellow 30 Seconds Alerts operator that threshing speed has slowed to 85% of normal speed. Stop engine, check for plugging, inspect drives and reduce harvesting speed. If message still displays, see your John Deere dealer.



OUO6075,0000A2E -19-13JUL07-4/13

Pressures and Temperatures:
Icon Reference Number Alarm Name Severity Icon Color Repeat Rate Machine Information/Solution
16 Hydrostatic Charge Pressure Red Continuous Alerts operator that abnormal pressure is detected in hydrostatic drive. Stop engine and check oil level in hydraulic reservoir. Add oil as needed or change filter. If message still displays, see your John Deere dealer.
17 Main Gearcase Pressure Red Continuous Alerts operator that abnormal pressure is detected in main gearcase. Stop engine and check oil level in hydraulic reservoir. Add oil as needed or change filter. If message still displays, see your John Deere dealer.
16 5SPD FH Transmission Pressure Red Continuous Alerts operator that abnormal pressure is detected in transmission while operating 5 speed feeder house drive. Stop engine and check main gearcase oil level. Add oil as needed or change filter. If message still displays, see your John Deere dealer.
18 Hydraulic Oil Temperature Yellow 10 Minutes Alerts operator that abnormal temperature is detected in hydraulic system. Stop engine and check oil level in hydraulic reservoir and clean oil cooler. If message still displays, see your John Deere dealer.
19 Main Gearcase Filter Restricted Yellow 10 Minutes Alerts operator that filter restriction is detected. Stop engine and change main gearcase filter. If message still displays, see your John Deere dealer.
20 Transmission Filter Restricted Yellow 10 Minutes Alerts operator that filter restriction is detected. Stop engine and change transmission filter. If message still displays, see your John Deere dealer.
21 Main Gearcase Temperature Yellow 10 Minutes Alerts operator that abnormal temperature is detected in main gearcase. Stop engine and check oil level in hydraulic reservoir and clean oil cooler. If message still displays, see your John Deere dealer.



OUO6075,0000A2E -19-13JUL07-5/13

Machine Safety Interlock System:
Icon Reference Number Alarm Name Severity Icon Color Repeat Rate Machine Information/Solution
1 Engine Start Failure - Header Engaged Yellow No Repeat Alerts operator that header engage switch is ON when trying to start machine. Turn OFF header engage switch. If message still displays, see your John Deere dealer.
1 Engine Start Failure - Separator Engaged Yellow No Repeat Alerts operator that separator engage switch is ON when trying to start machine. Turn OFF separator engage switch. If message still displays, see your John Deere dealer.
1 Engine Start Failure - Unloading Auger Engaged Yellow No Repeat Alerts operator that unloading auger drive switch is ON when trying to start machine. Turn OFF unloading auger engage switch. If message still displays, see your John Deere dealer.
1 Engine Start Failure - Engine Already Running Yellow No Repeat Alerts operator that engine is already running when trying to start machine.
1 Engine Start Failure - Hydrostatic Handle Out of Neutral Yellow No Repeat Alerts operator that hydrostatic handle is out of neutral position when trying to start machine. Move hydrostatic handle into neutral position and start machine. If message still displays, see your John Deere dealer.
9 Header Engage Failure - Vehicle Is In Road Mode Yellow No Repeat Alerts operator that road transport disconnect switch is ON when trying to engage header. Turn road transport disconnect switch OFF and engage header. If message still displays, see your John Deere dealer.
9 Header Engage Failure - Quick Stop Button Pressed Yellow No Repeat Alerts operator that quick stop switch is ON when trying to engage header. Do not press quick stop switch while trying to engage header. If message still displays, see your John Deere dealer.
9 Header Engage Failure - Operator Out Of Seat Yellow No Repeat Alerts operator that they are not seated when trying to engage header. Operator must be seated to engage header. If message still displays, see your John Deere dealer.
9 Header Disengage Failure - Quick Stop Button Pressed Yellow No Repeat Alerts operator that header was disengaged with quick stop switch. Turn header engage switch OFF to reset and ON again to engage header. If message still displays, see your John Deere dealer.
9 Header Disengage Failure - Operator Out Of Seat Yellow No Repeat Alerts operator that header was disengaged due to operator not seated. Operator must be seated. Turn header engage switch OFF to reset and ON again to engage header. If message still displays, see your John Deere dealer.
22 HILLMASTER Can't Tilt - Park Brake Engaged Yellow No Repeat Alerts operator that park brake is engaged and HILLMASTER cannot tilt. Disengage park brake for HILLMASTER to tilt. If message still displays, see your John Deere dealer.
1 Harvesting At Low Engine Speed Yellow No Repeat Alerts operator that machine is operating at low speed while harvesting. Machine must be in high engine speed during normal harvesting. If message still displays, see your John Deere dealer.



OUO6075,0000A2E -19-13JUL07-6/13

Machine Safety Interlock System:
Icon Reference Number Alarm Name Severity Icon Color Repeat Rate Machine Information/Solution
11 Separator Engage Failure - Operator out of Seat Yellow No Repeat Alerts operator that they are not seated when trying to engage separator. Operator must be seated to engage separator. If message still displays, see your John Deere dealer.
11 Separator Engage Failure - Vehicle Is In Road Mode Yellow No Repeat Alerts operator that road transport disconnect switch is ON when trying to engage separator. Turn road transport disconnect switch OFF and engage separator. If message still displays, see your John Deere dealer.
23 Unloading System Engage Failure - Quick Stop Button Pressed Yellow No Repeat Alerts operator that unloading auger system was disengaged due to quick stop switch being pressed. Turn unloading auger drive switch ON again to engage system. If message still displays, see your John Deere dealer.
23 Unloading System Engage Failure - Auger Not Fully Unfolded Yellow No Repeat Alerts operator that unloading auger drive system was disengaged due to power folding auger not being fully unfolded. Press folding auger switch to fully unfold auger and turn unloading auger drive switch ON to engage system. If message still displays, see your John Deere dealer.
23 Unloading System Engage Failure - Vehicle Is In Road Mode Yellow No Repeat Alerts operator that road transport disconnect switch is ON when trying to engage unloading auger system. Turn road transport disconnect switch OFF and turn unloading auger drive switch ON. If message still displays, see your John Deere dealer.
23 Unloading System Disengage Failure - Quick Stop Button Pressed Yellow No Repeat Alerts operator that quick stop switch is pressed while trying to engage unloading auger drive system. Do not press quick stop switch while trying to engage unloading auger drive system. If message still displays, see your John Deere dealer.
23 Unloading System Disengage Failure - Operator Out Of Seat Yellow No Repeat Alerts operator that unloading auger drive system was disengaged due to operator not seated. Operator must be seated. Turn unloading auger drive switch ON to engage system. If message still displays, see your John Deere dealer.
23 Unloading System Disengage Failure - Auger Not Fully Unfolded Yellow No Repeat Alerts operator that unloading auger drive system was disengaged due to power folding auger not being fully unfolded. Press folding auger switch to fully unfold auger and turn unloading auger drive switch ON to engage system. If message still displays, see your John Deere dealer.
23 Unloading System Disengage Failure - Auger Not Swung Out Yellow No Repeat Alerts operator that unloading auger drive system was disengaged due to power folding auger not being swung out from transport or storage position. Press folding auger switch to fully unfold auger and turn unloading auger drive switch ON to engage system. If message still displays, see your John Deere dealer.



OUO6075,0000A2E -19-13JUL07-7/13

Machine Safety Interlock System:
Icon Reference Number Alarm Name Severity Icon Color Repeat Rate Machine Information/Solution
12 Chopper Up, But Speed Detected Yellow 30 Seconds Alerts operator that chopper is in raised position and speed is detected. Shut OFF engine, verify belt is in storage position and inspect speed sensor. If message still displays, see your John Deere dealer.
24 Non-Ideal Transport State Entered - Auger Out Yellow 10 Minutes Alerts operator that unloading auger is swung out when transporting machine. Swing unloading auger to transport position. If message still displays, see your John Deere dealer.
24 Non-Ideal Transport State Entered - Auger Not Folded Yellow 10 Minutes Alerts operator that power folding auger is not folded when transporting machine. Swing power folding auger to transport position. If message still displays, see your John Deere dealer.
24 Non-Ideal Transport State Entered - Rear Discharge Lights ON Yellow 10 Minutes Alerts operator that rear discharge lights are ON when transporting machine. Turn rear discharge lights OFF. If message still displays, see your John Deere dealer.
24 Non-Ideal Transport State Entered - Stubble Lights ON Yellow 10 Minutes Alerts operator that stubble lights are ON when transporting machine. Turn stubble lights OFF. If message still displays, see your John Deere dealer.
12 Chopper Option OFF When Speed Detected Gray No Repeat Alerts operator that chopper option is turned OFF and speed is still detected. If message still displays, see your John Deere dealer.
24 Road Mode - HILLMASTER Locked Out Gray No Repeat Alerts operator that road transport disconnect switch is ON and operator is trying to turn HILLMASTER ON or OFF. Turn road transport disconnect switch OFF to engage or disengage HILLMASTER. If message still displays, see your John Deere dealer.
24 Road Mode - Unloading Auger Swing Gray No Repeat Alerts operator that road transport disconnect switch is ON and operator is trying to swing unloading auger in or out. Turn road transport disconnect switch OFF to swing unloading auger in or out. If message still displays, see your John Deere dealer.
24 Road Mode - Unloading Auger Folded Gray No Repeat Alerts operator that road transport disconnect switch is ON and operator is trying to swing power folding unloading auger in or out. Turn road transport disconnect switch OFF to swing power folding unloading auger in or out. If message still displays, see your John Deere dealer.
24 Road Mode - Grain Tank Covers Gray No Repeat Alerts operator that road transport disconnect switch is ON and operator is trying to raise or lower grain tank cover. Turn road transport disconnect switch OFF to raise or lower grain tank covers. If message still displays, see your John Deere dealer.
24 Road Mode - Header Raise/Lower/Tilt Yellow No Repeat Alerts operator that road transport disconnect switch is ON and operator is trying to raise/lower or tilt header. Turn road transport disconnect switch OFF to raise/lower or tilt header. If message still displays, see your John Deere dealer.



OUO6075,0000A2E -19-13JUL07-8/13

Machine Safety Interlock System:
Icon Reference Number Alarm Name Severity Icon Color Repeat Rate Machine Information/Solution
24 Road Mode - Chopper Vane Angle Yellow No Repeat Alerts operator that road transport disconnect switch is ON and operator is trying to adjust chopper vane angle. Turn road transport disconnect switch OFF to adjust chopper vane angle. If message still displays, see your John Deere dealer.
24 Road Mode - Header Hydraulic Functions Gray No Repeat Alerts operator that road transport disconnect switch is ON and operator is trying to adjust reel raise/lower, reel fore/aft, and deck plate spacing. Turn road transport disconnect switch OFF to adjust header hydraulics. If message still displays, see your John Deere dealer.



OUO6075,0000A2E -19-13JUL07-9/13

Machine System Status:
Icon Reference Number Alarm Name Severity Icon Color Repeat Rate Machine Information/Solution
24 Road Mode Engaged Yellow No Repeat Alerts operator that road transport disconnect switch is turned ON.
24 Road Mode Disengaged Yellow No Repeat Alerts operator that road transport disconnect switch is turned OFF.
24 Road Mode Engage Failure Yellow No Repeat Alerts operator that separator is engaged and road transport cannot be activated. Turn separator engage switch OFF for road transport. If message still displays, see your John Deere dealer.
25 Alternator Regulator Failed Yellow 10 Minutes Alerts operator that alternator regulator failed, see your John Deere dealer.
26 Battery Voltage Low Red Continuous Alerts operator that battery voltage is low. Check fluid level in each cell, clean battery posts and cable, inspect battery cables, inspect alternator belt and charge batteries. If message still displays, see your John Deere dealer.
27 Grain Tank Covers Yellow 30 Seconds Alerts operator that grain tank covers are open or separator is engaged with grain tank covers closed. Open grain tank covers when separator is engaged. Close grain tank covers when operating near power lines or before transporting machine on roadway. If message still displays, see your John Deere dealer.
28 Out Of Neutral/Park Brake Engaged Yellow 10 Seconds Alerts operator that park brake is engaged while trying to move multifunction control handle out of neutral position. Release park brake and move multifunction control handle. If message still displays, see your John Deere dealer.
14 Tailings Full Yellow 30 Seconds Alerts operator that tailings elevator is full. Stop engine, check for plugging, inspect drives, adjust chaffer and sieve and reduce harvesting speed. If message still displays, see your John Deere dealer.
29 Grain Tank Full Yellow 30 Seconds Alerts operator that grain tank is full. Unload grain tank to remove grain. Check grain tank full sensor indicator in grain tank for movement and clean if necessary. If message still displays, see your John Deere dealer.
22 HILLMASTER Max Tilt Yellow No Repeat Alerts operator that HILLMASTER has reached maximum tilt position. Max tilt will remain ON until machine senses it is operating on slopes less than 15%. If message still displays, see your John Deere dealer.
30 Fuel Level Low Yellow 10 Minutes Alerts operator that 11% of fuel remains in fuel tank (approximately one hour of operation). Add fuel as needed. If message still displays, see your John Deere dealer.
31 Moisture Sensor - Moisture Low Yellow 10 Minutes Alerts operator when moisture sensor value drops below operator preset value. If message still displays, see your John Deere dealer.



OUO6075,0000A2E -19-13JUL07-10/13

Machine System Status:
Icon Reference Number Alarm Name Severity Icon Color Repeat Rate Machine Information/Solution
31 Moisture Sensor - Moisture High Yellow 10 Minutes Alerts operator when moisture sensor value is above operator preset value. If message still displays, see your John Deere dealer.
31 Moisture Sensor - Recording OFF Yellow 10 Minutes Alerts operator when moisture sensor recording is OFF, but flow is detected by mass flow sensor. Turn moisture sensor recording ON if desired. If message still displays, see your John Deere dealer.
23 Unloading Auger Engaged Yellow 30 Seconds Alerts operator that unloading auger drive is engaged. If message still displays, see your John Deere dealer.
32 Amber Flashers Missing/Burnt Out Left Gray No Repeat Alerts operator when left amber flasher is missing or is burnt out. Check and replace bulb as needed. If message still displays, see your John Deere dealer.
32 Amber Flashers Missing/Burnt Out Right Gray No Repeat Alerts operator when right amber flasher is missing or is burnt out. Check and replace bulb as needed. If message still displays, see your John Deere dealer.
33 Grain Tank 3/4 Full Gray No Repeat Alerts operator that grain tank is 3/4 full. Unload grain tank or continue harvesting until grain tank full is displayed. Check grain tank 3/4 full sensor indicator in grain tank for movement and clean if necessary. If message still displays, see your John Deere dealer.
34 Engine Service Lights ON Gray 60 Minutes Alerts operator that engine service lights are ON. Turn engine service lights OFF. If message still displays, see your John Deere dealer.
34 Gullwing Service Lights ON Gray 60 Minutes Alerts operator that gullwing service lights are ON. Turn gullwing service lights OFF. If message still displays, see your John Deere dealer.
34 Shoe Service Lights Switch ON Gray 60 Minutes Alerts operator that shoe service lights are ON. Turn shoe service lights OFF. If message still displays, see your John Deere dealer.
35 Unloading Auger Is Swung Out Gray No Repeat Alerts operator that unloading auger is swung out. Swing unloading auger back to storage position if desired. If message still displays, see your John Deere dealer.



OUO6075,0000A2E -19-13JUL07-11/13

Machine Setpoints:
Icon Reference Number Alarm Name Severity Icon Color Repeat Rate Machine Information/Solution
36 Chopper Vane Angle Setpoint Not Reached Gray No Repeat Alerts operator that chopper vane angle setpoint was not reached. Stop engine and check chopper vanes for obstructions. If needed recalibrate chopper vanes. If message still displays, see your John Deere dealer.
5 Cleaning Fan Speed Setpoint Not Reached Gray No Repeat Alerts operator that cleaning fan speed setpoint was not reached. Stop engine and check cleaning fan for obstructions and inspect drives. If message still displays, see your John Deere dealer.
39 Chaffer Opening Setpoint Not Reached Gray No Repeat Alerts operator that chaffer opening setpoint was not reached. Stop engine and check chaffer for obstructions. If needed recalibrate chaffer. If message still displays, see your John Deere dealer.
40 Sieve Opening Setpoint Not Reached Gray No Repeat Alerts operator that sieve opening setpoint was not reached. Stop engine and check sieve for obstructions. If needed recalibrate sieve. If message still displays, see your John Deere dealer.
37 Threshing Clearance Setpoint Not Reached Gray No Repeat Alerts operator that threshing clearance setpoint was not reached. Stop engine and check separator for obstructions. If needed recalibrate threshing clearance. If message still displays, see your John Deere dealer.
11 Threshing Speed Setpoint Not Reached Gray No Repeat Alerts operator that threshing speed setpoint was not reached. Stop engine and check separator for obstructions and inspect drives. If message still displays, see your John Deere dealer.



OUO6075,0000A2E -19-13JUL07-12/13

Miscellaneous:
Icon Reference Number Alarm Name Severity Icon Color Repeat Rate Machine Information/Solution
31 Moisture Sensor - Cell Not Filling Yellow No Repeat Alerts operator that moisture cell is not filling. Stop engine and check moisture sensor for obstructions. If message still displays, see your John Deere dealer.
31 Moisture Sensor Plunger - Retracted Yellow No Repeat Alerts operator that moisture sensor plunger in diagnostic mode has been retracted. This allows moisture sensor to be inspected for obstructions and problems. Turn hey switch OFF to reset moisture sensor. If message still displays, see your John Deere dealer.
31 Moisture Sensor - Inspect Plunger Yellow No Repeat Alerts operator to inspect plunger. Stop engine and check moisture sensor plunger for problems. If message still displays, see your John Deere dealer.
31 Moisture Sensor - Plunger Slow Yellow No Repeat Alerts operator that plunger is slow to extend or retract. Stop engine and check moisture sensor plunger for problems. If message still displays, see your John Deere dealer.
31 Moisture Sensor - Low Record Space Yellow No Repeat Alerts operator that lack of space is available on moisture sensor. Save field data and clear fields after saving data. If message still displays, see your John Deere dealer.



OUO6075,0000A2E -19-13JUL07-13/13
