Header Reel/Belt Pickup Pump Belt (Fixed Speed Feeder House)-Replacing

CAUTION: Shut OFF engine, set parking brake and remove key.

Lower safety stop and remove left-hand feeder house shields.

Remove shields (A).

A-Shields

OUO6075,0000AD5 -19-23APR07-1/8

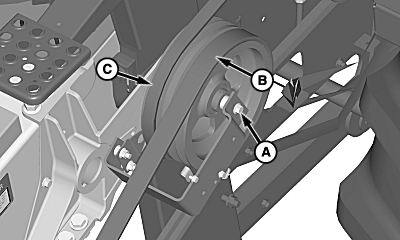

Loosen nuts (A) to relieve tension from drive belt.

Remove cap screw and nut to move reel pump brace (B) out of way so drive belt (C) can be removed.

A-Nuts
B-Brace
C-Drive Belt

OUO6075,0000AD5 -19-23APR07-2/8

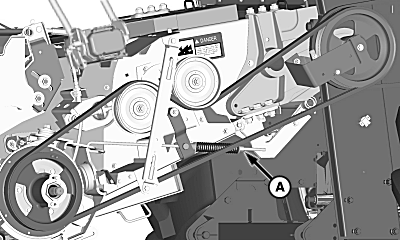

Loosen nuts (A) to relieve tension on drive belt.

A-Nuts

OUO6075,0000AD5 -19-23APR07-3/8

Remove cap screw (A), fixed speed drive belt (B) and header reel/belt pickup pump belt (C).

A-Cap Screw
B-Fixed Speed Drive Belt
C-Header Reel/Belt Pickup Pump Belt

OUO6075,0000AD5 -19-23APR07-4/8

Disconnect connector (A) and remove strap from bracket (B).

Remove and discard header reel/belt pickup pump belt (C).

Install replacement header reel/belt pickup pump belt, connect strap to bracket and connect electrical connector.

A-Connector
B-Bracket
C-Header Reel/Belt Pickup Pump Belt

OUO6075,0000AD5 -19-23APR07-5/8

Install replacement header reel/belt pickup pump belt (C) and fixed speed drive belt (B).

Install and tighten cap screw (A) to specification.

Specification

A-Header Reel/Belt Pickup Pump Belt
B-Fixed Speed Drive Belt
C-Cap Screw

OUO6075,0000AD5 -19-23APR07-6/8

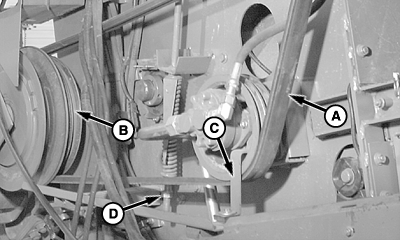

Install drive belt (A) around reel pump and rear sheaves (B).

Install previously removed reel pump brace (C) with cap screw and nut.

Tighten nuts (D) to position washer between end of gauge and bottom of step to adjust drive belt.

A-Drive Belt
B-Sheave
C-Brace
D-Nuts (2 Used)

OUO6075,0000AD5 -19-23APR07-7/8

Tighten nuts (A) to position washer between end of gauge and bottom of step to properly tensioner drive belt.

Install left-hand feeder house shields.

A-Nuts

OUO6075,0000AD5 -19-23APR07-8/8
