Feeder House Variable Speed Drive Belt-Adjusting

NOTE: Minor adjustments can be made to variable speed belt by raising idler. If a 3 mm (1/8 in.) gap cannot be reached by raising idler, proceed to next step.

Start engine, engage separator and move engine speed switch to fast idle. Adjust feeder house drive belt to slow front shaft speed.

Disengage separator, stop engine and remove key.

Lower safety stop and remove left-hand feeder house shields.

Look under rubber boot (A) to verify if upper sheaves are fully open. At low speed position, outer sheave half bulb will be against bracket (B).

A-Rubber Boot
B-Bracket

OUO6075,0000ADC -19-23APR07-1/9

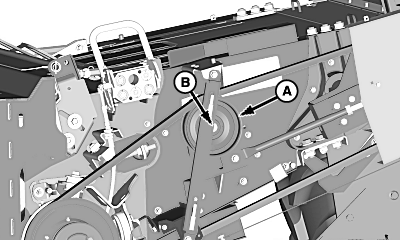

Loosen nut (A) to adjust idler (B) to lower position.

A-Nut
B-Idler

OUO6075,0000ADC -19-23APR07-2/9

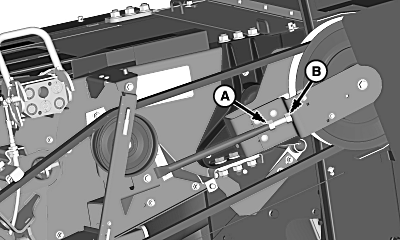

Remove and retain nuts (A) and bracket (B).

Loosen nuts (C) to allow upper sheave assembly to move.

A-Nuts (2 Used)
B-Bracket
C-Nuts (3 Used)

OUO6075,0000ADC -19-23APR07-3/9

NOTE: Nut (C) may be moved and jammed against nut (A). Together these nuts can be used to turn tensioner bolt.

Loosen nut (A) away from bracket (B) until a 3 mm (1/8 in.) gap exists between either side of bracket.

Tighten nut (C) against nut (A).

A-Nut
B-Bracket
C-Nut

OUO6075,0000ADC -19-23APR07-4/9

IMPORTANT: Rotate belt while adjusting sheave gap. Failure to rotate belt while adjusting sheave gap will result in belt damage.

A gap between sheave halves is important so sheave halves can grip belt when in slow speed position. Cutting platform drive shaft speed must be at slow speed.

Turn nut (A) to adjust bolt (B).

Move upper variable sheave assembly with bolt until a 3 mm (1/8 in.) gap exists between lower sheave halves or upper sheave assembly reaches end of slots.

A-Nut
B-Bolt
C-Gap, 3 mm (1/8 in.)

OUO6075,0000ADC -19-23APR07-5/9

Tighten nut (A) first and then nut (B).

A-Nut
B-Nut

OUO6075,0000ADC -19-23APR07-6/9

Tighten nuts (C) and install bracket (B) and retain with nuts (A).

A-Nuts (2 Used)
B-Bracket
C-Nuts (3 Used)

OUO6075,0000ADC -19-23APR07-7/9

IMPORTANT: DO NOT stand on belt while pushing up on idler to set gap.

Raise idler (A) until idler touches drive belt.

Raise sheave an additional 25 mm (1 in.) and tighten nut (B).

A-Idler
B-Nut

OUO6075,0000ADC -19-23APR07-8/9

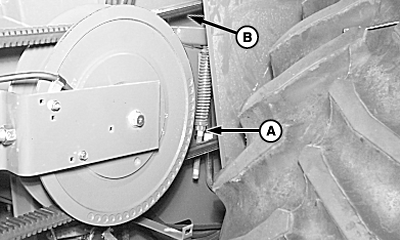

Tighten adjusting nut (A) to position washer between end of gauge and bottom of step to adjust reel drive belt (B).

Install feeder house shields.

A-Nut
B-Drive Belt
