Harvesting Information Pages

H86247
H86248

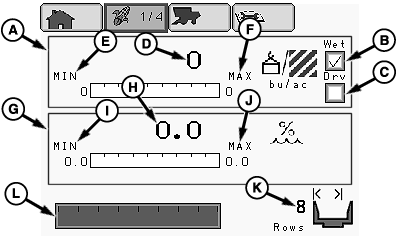

Page 1 of 4

Harvesting Information:

  • Yield (A)
    • Wet (B)
    • Dry (C)
    • Instantaneous (Recording ON) (D)
    • Average (Recording OFF) (D)
    • Min (E)
    • Max (F)
  • Moisture (G)
    • Instantaneous (Recording ON) (H)
    • Average (Recording OFF) (H)
    • Min (I)
    • Max (J)
  • Cut Width 1 (K)
    • Increase/Decrease (L)

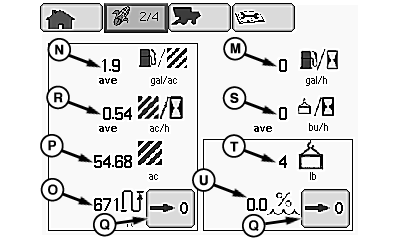

Page 2 of 4

Performance/Productivity:

  • Fuel Consumption
    • Instantaneous Totals (gal/ac, l/ha, gal/hr and l/ac) (M)
    • Average Totals (gal/hr or l/hr) (N)
  • Distance Counter (O) and Area Counter (P)
    • Generic counter (operator reset preference (i.e. load, etc.))
    • Clear Icon (Q)
  • Productivity (Instantaneous-Recording ON) (Average-Recording OFF)
    • Area per Hour (R)
    • Volume or Weight per Hour (S)
  • Weight Counter (T) and Moisture Counter (U)
    • Generic counter (operator reset preference (i.e. load, etc.))
    • Clear Icon (Q)

1Only shows when header is connected.

OUO6075,0000B7E -19-22AUG07-1/3

H86249
H86250

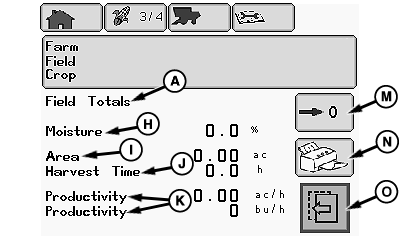

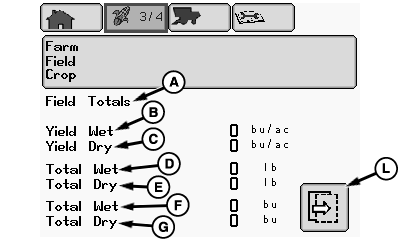

Page 3 of 4

NOTE: The following will appear on GreenStar display (if equipped) instead of on CommandCenter.

If machine is not equipped with moisture sensor, only the following Field Totals information will appear:

  • Area

  • Harvest Time

  • Productivity

  • Field Totals (A):
    • Yield Wet (B)
  • Yield Dry (C)
  • Total Wet (Weight lb or kg) (D)
  • Total Dry (Weight lb or kg) (E)
  • Total Wet (Yield Units) (F)
  • Total Dry (Yield Units) (G)
  • Moisture (H)
  • Area (I)
  • Harvest Time (J)
  • Productivity (K)
  • Items to select
    • Next Page (L)
    • Clear Totals (M)
    • Printer (Export Only) (N)
    • Previous Page (O)

    • OUO6075,0000B7E -19-22AUG07-2/3

    H86333
    H86332

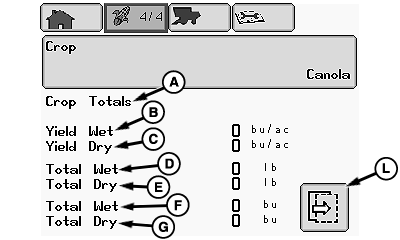

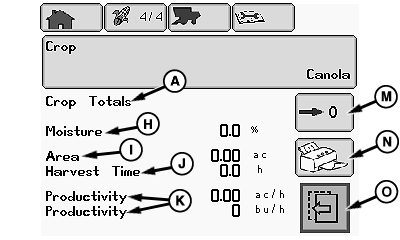

    Page 4 of 4

    NOTE: The following will appear on GreenStar display (if equipped) instead of on CommandCenter.

    If machine is not equipped with moisture sensor, only the following Field Totals information will appear:

    • Area

    • Harvest Time

    • Productivity

    • Crop Totals (A):
      • Yield Wet (B)
    • Yield Dry (C)
    • Total Wet (Weight lb or kg) (D)
    • Total Dry (Weight lb or kg) (E)
    • Total Wet (Yield Units) (F)
    • Total Dry (Yield Units) (G)
    • Moisture (H)
    • Area (I)
    • Harvest Time (J)
    • Productivity (K)
  • Items to select
    • Next Page (L)
    • Clear Totals (M)
    • Printer (Export Only) (N)
    • Previous Page (O)

    • OUO6075,0000B7E -19-22AUG07-3/3
