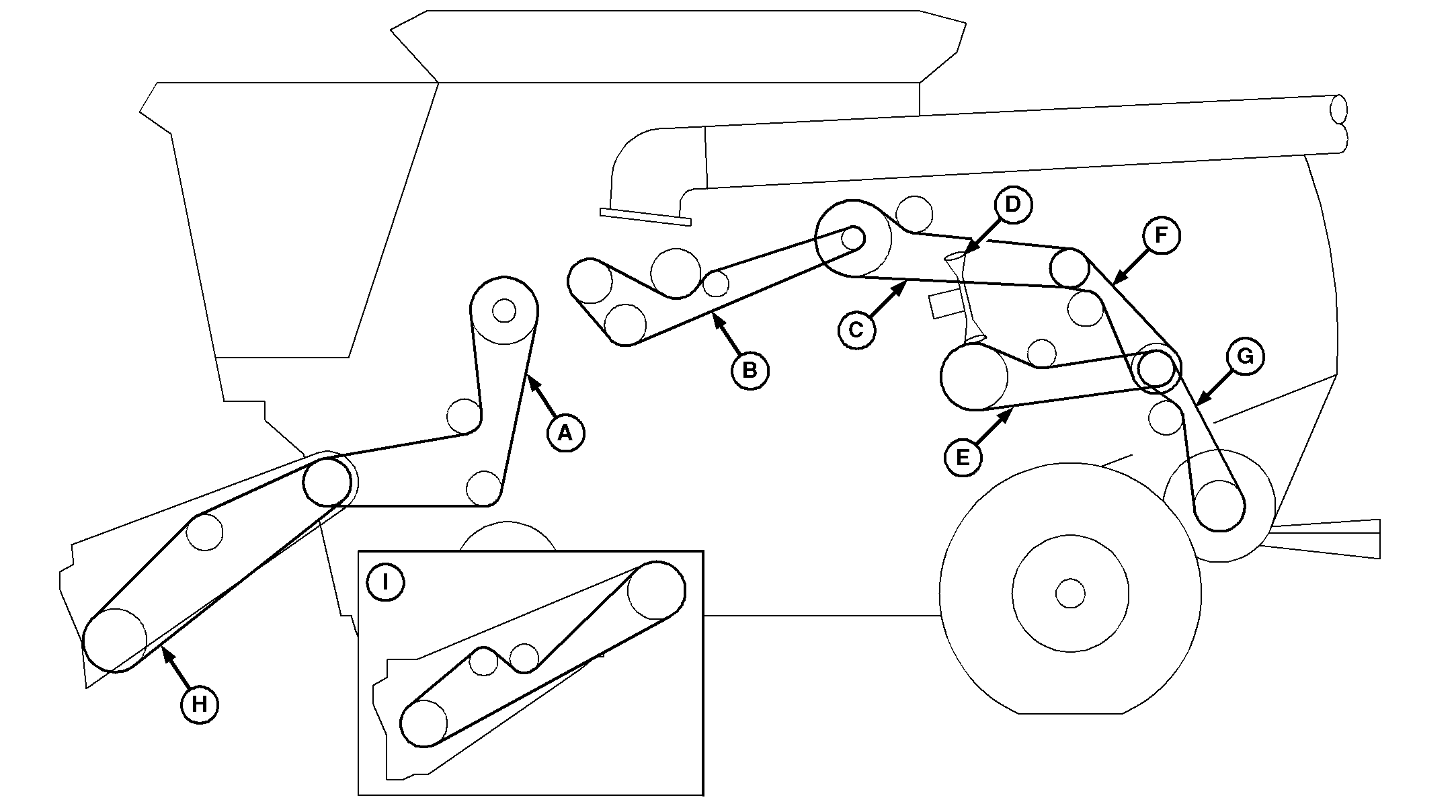

A-Header and Reel Pump Standard/High Capacity Belt
B-Unloading Auger System, #60 Roller Chain
|
C-Unloading Auger System Belt
D-Separator Variable Drive Belt
E-Discharge Beater Belt
|
F-Countershaft, Discharge Beater and Chopper Belt
G-Straw Chopper Belt
H-Feeder House Variable Drive Standard/High Capacity Belt
|
I-Fixed Speed Feeder House Drive Belt
|
