NOTE:
Exit lights remain ON for a maximum of 90 seconds after key switch is turned OFF (if road or field lights were used within the previous five minutes). Operator chooses to light the left or right side of the machine with turn signal lever.
When all lights are first turned to the ON position with key switch OFF, there will be a slight delay before lights turn ON.
-

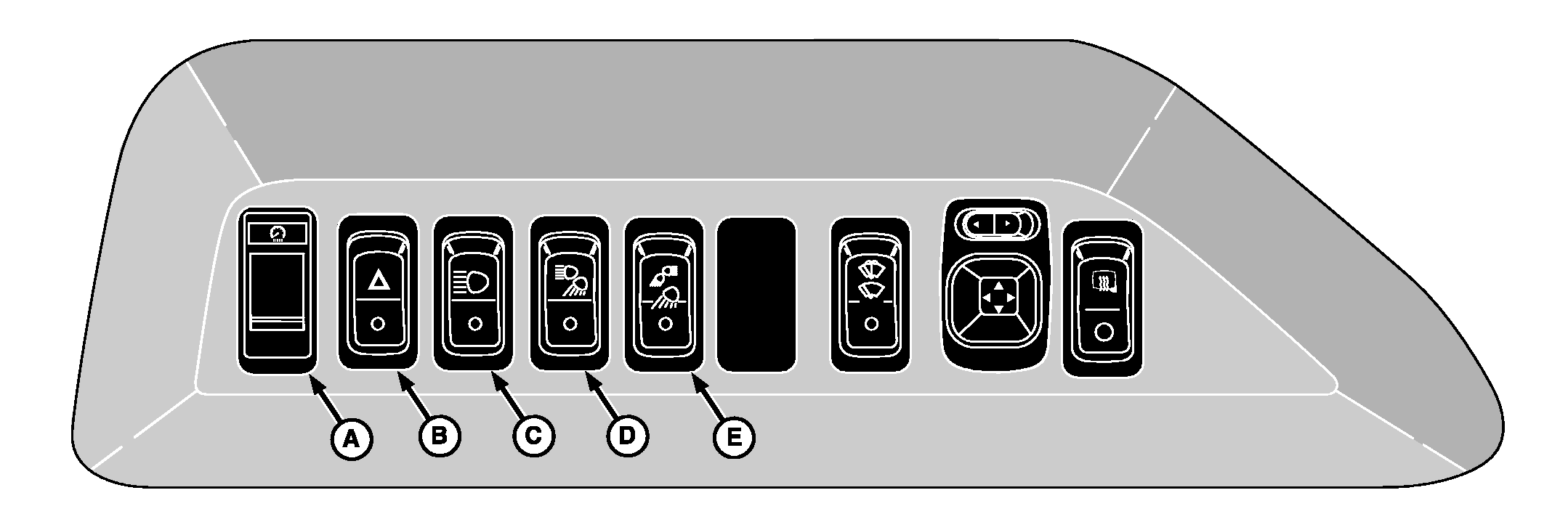

Dimmer switch (A) controls all cab interior lights.
|
-
Hazard light switch (B) controls warning (flashing) lights, four road lights and tail lights (if engine is running).
-
Road light switch (C) controls warning (flashing) lights and four road lights, and tail lights.
-
Field light switch (D) controls grain tank and field lights (field position), and side finder lights ON with turn signal lever. Unloading auger light when extended.
-
Work light switch (E) controls stubble lights in position 1 and stubble lights and rear residue lights in position 2.
|
