Hazard Lights

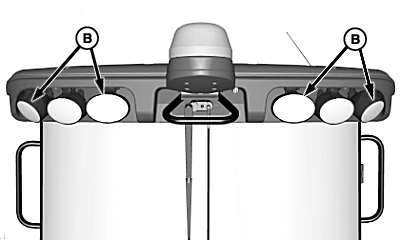

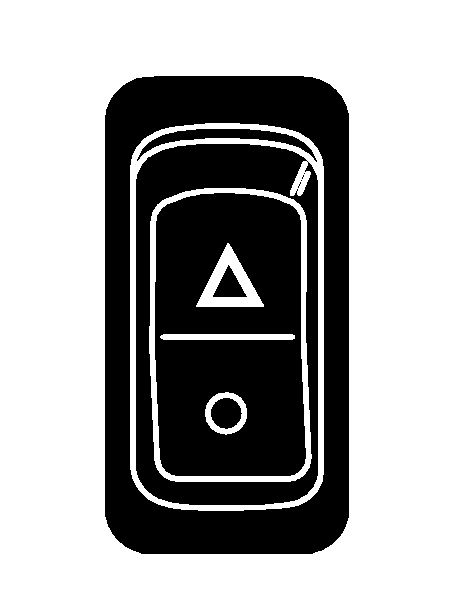

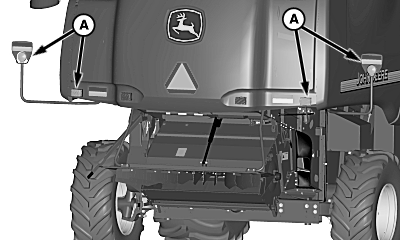

Hazard switch controls the warning (flashing) lights (A) and four road lights (B) (if engine is running). When transporting on a roadway, flashing lights give warning to other drivers. These lights are located on both sides of the machine at the front and rear. Hazard light switch is a two position switch.
|
|
CAUTION:
Lights must be turned ON when transporting. Swing cab ladder fully forward to orient warning light towards oncoming motorists.
OUO6075,0000642 -19-15JUN07-1/1 |
