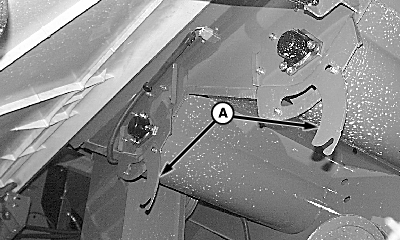

Grain Tank Drain HolesGrain tank drain hole doors (A) are located on right-hand end of both cross augers and must be opened during storage or for cleaning grain tank. Loosen cap screws and slide doors away from drain holes.
|
|
