Grain Tank Cross Auger Covers

CAUTION: Shut OFF engine, set parking brake and remove key.

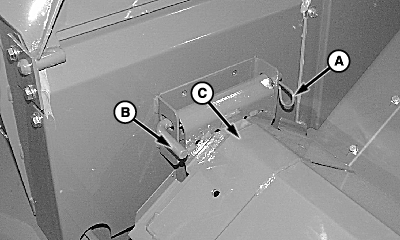

Remove locking pins (A) and pins (B) holding ends of auger cover (C) to grain tank. Hold cover in desired position and install previously removed pins and locking pins.

Covers should be level and mounted so each cover is the same distance from auger over entire length.

NOTE: Set auger covers to top position for all crops.

A-Locking Pins
B-Pins
C-Auger Cover

OUO6075,00007C0 -19-23APR07-1/1
