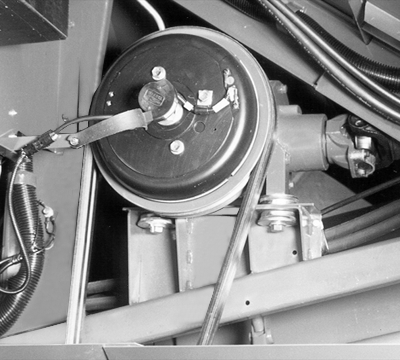

Header Drive Electromagnetic Clutch

CAUTION: Shut OFF engine, set parking brake and remove key.

If clutch will not work, check the following:

Check and tighten all electrical connections between clutch and batteries. Examine wiring and repair as needed.

Voltage across hot terminals must be 11 volts minimum with engine OFF and electric clutch ON.

If these checks do not correct the problem, see your John Deere dealer.
