Fuel System

CAUTION: Shut OFF engine, set parking brake and remove key before performing maintenance work on fuel filters.

NOTE: Make sure precleaner bowl is fully seated to prevent air from entering the fuel system.

Close fuel shut off valve on fuel tank.

Remove precleaner and clean screen (A) if dirty fuel was been used.

Open drain (B) to inspect fuel system for water in primary filter (C), (see Service Engine section).

If dirty fuel was used replace filter (C), (see Service Engine section).

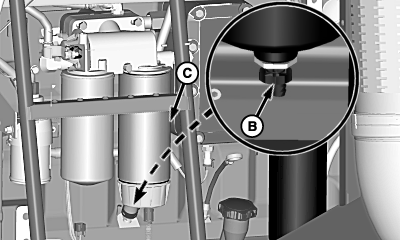

A-Screen
B-Drain
C-Primary Fuel Filter

OUO6075,0000875 -19-15MAR07-1/1
