Engine Accessory/Fan Drive Belt-Replacing

causym CAUTION: Shut OFF engine, set parking brake and remove key.

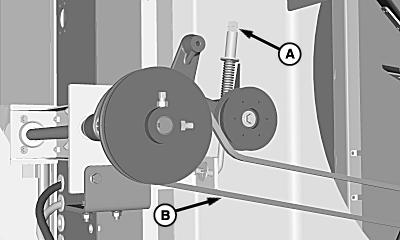

Loosen nut (A) and remove rotary screen drive belt (B).


A-Nut
B-Rotary Screen Drive Belt

H82404

OUO6075,0000881 -19-15MAR07-1/3

H71844

Fan Belt Routing
H82475

Accessory Belt Routing


A-Square Hole

B-Belt



Insert breaker bar into square hole (A) on tensioner arm to release belt tension.

Remove belt (B) from engine. Work belt over fan and remove belt.

OUO6075,0000881 -19-15MAR07-2/3

Install belt (B) in reverse order.

Tighten nut (A) until washer is positioned between end of gauge and bottom of step.


A-Nut
B-Rotary Screen Drive Belt

H82404

OUO6075,0000881 -19-15MAR07-3/3
