CAUTION: Raise feeder house, lower safety stop, shut OFF engine, set parking brake and remove key.

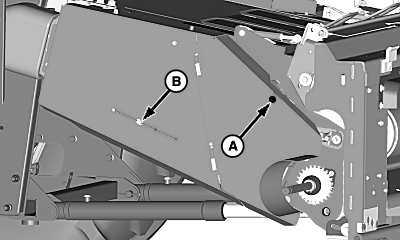

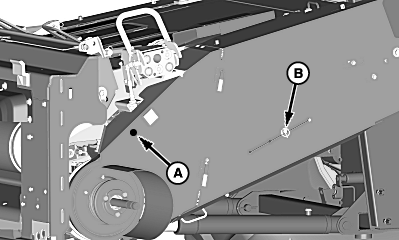

Feeder house shields have a front and rear shield. Release latch (A) and swing front shield open for service.
Remove quick-lock pin (B) to remove rear shield.
A-Latch B-Quick-Lock Pin
OUO6075,000089F -19-08AUG07-1/1
CAUTION:
Raise feeder house, lower safety stop, shut OFF engine, set parking brake and remove key.
