Every 1500 Hours or Two Years

H86859

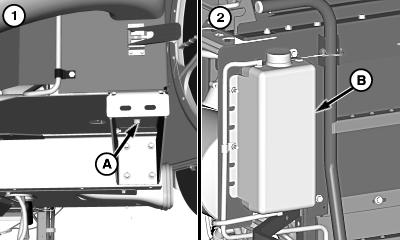

1. Radiator - Open drain (A) to remove coolant from radiator.

2. Recovery Tank - Flush and refill with correct coolant and conditioner (see Cooling System Draining in Service Engine section and Engine Coolant recommendations given in Fuels and Lubricants section). Check engine coolant level in recovery tank (B) with engine cold. Level must be up to "COLD" mark.


A-Drain
B-Recovery Tank

H86844

OUO6075,00008E6 -19-06DEC07-1/1
