OMH229937: 9870 STS Combine(9870 STS 725101- ), Block File: OUO6075_00008E8_19

As Required

A-Windshield Washer Reservoir Cap

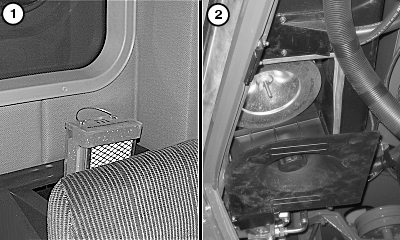

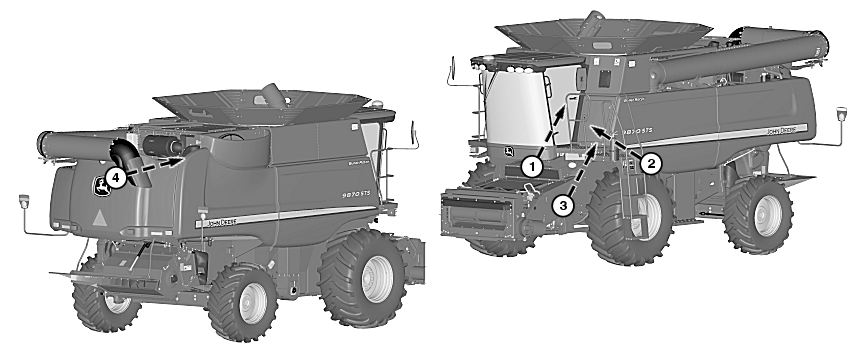

1. Recirculating Filter - Remove tray and remove filter from inside of housing. Clean or replace filter. Check to be certain air flow arrow points toward front of machine.

2. Cab Fresh Air Filter - Turn knob and pull out tray. Remove wing nut and pull out filter. Clean or replace as needed.

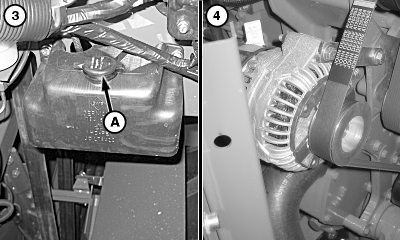

3. Windshield Washer Reservoir - Open cap (A) and fill windshield washer reservoir as needed.

4. Alternator Screen - Clean alternator screen when 50% covered with debris.

OUO6075,00008E8 -19-02APR07-1/1
