Every 250 Hours
|
|
|
|
|
|
|
|
IMPORTANT: Change oil every 100 hours if fuel is more than 0.5 % sulfur. Fill crankcase with seasonal viscosity grade oil or Torq-Gard Supreme ™ (250 hours change interval). If using Plus-50 ™ oil and a John Deere filter, service interval can be extended by 50 percent. Example: 250 Hours extends to 375 Hours. |

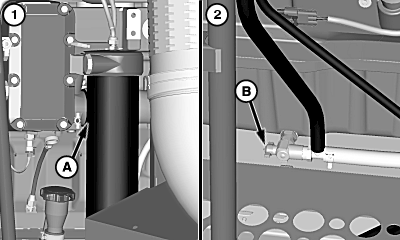

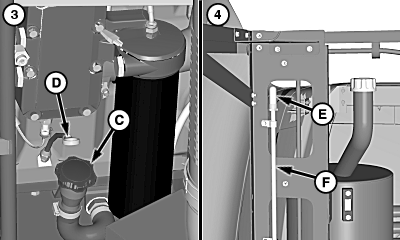

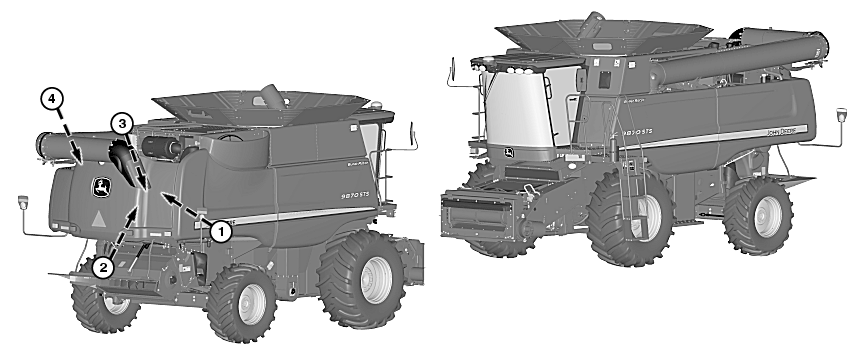

1. Engine Crank Case Oil Filter - Remove and replace oil filter (A). 2. Engine Crank Case Oil - Open drain (B) to remove oil. 3. Engine Crank Case Oil - Remove cap (C) to fill and check oil level with dipstick (D) after filling. |
|
Torq-Gard Supreme is a trademark of Deere & Company | OUO6075,00008EF -19-17DEC07-1/2 |
| 4. Fuel Tank Breather - Visually inspect fuel tank breather (E). Do not allow debris to collect on | breather. Remove fuel tank breather from hose (F) and clean. |
OUO6075,00008EF -19-17DEC07-2/2 |
