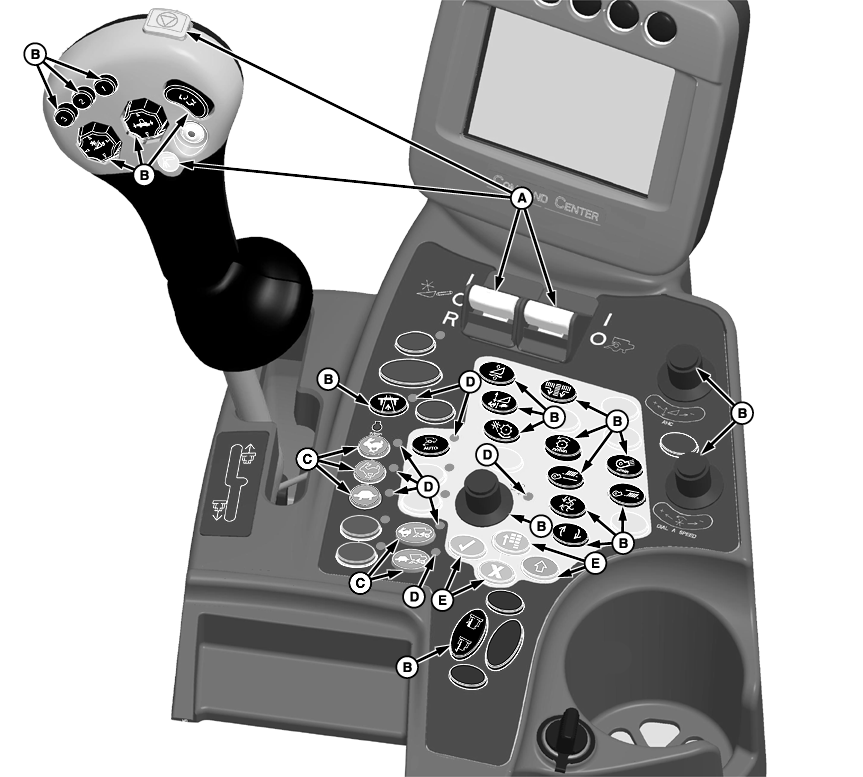

Before operating machine for the first time, become familiar with switches and controls. Controls are color "coded" to help quickly locate them when operating.

• Yellow (A) - drive engagement

• Black (B) - operating adjustments and controls
• Orange (C) - ground drive and engine speed
• Green (D) - activation indicator
• Green (E) - CommandCenter display controls

OUO6075,00009F2 -19-02APR07-1/1
