Standard Discharge Beater-Wing Replacing

causym CAUTION: Shut OFF engine, set parking brake and remove key.

NOTE: Wings can be reversed for additional wear.

Discharge beater wings and wear strips can be replaced without removing the discharge beater. Replace discharge beater wings in sets of two and opposite of each other to maintain proper balance.

NOTE: If discharge beater is removed from machine, or has been serviced, tighten clamp bolts before securing wings. Tighten cap screws to specification.

Remove round head bolts (A) and replace discharge beater wear strips (B) as required. Tighten round head bolts to specification.

Specification

Discharge Beater Wear Strip Round Head Bolts -Torque 70 N·m (52 lb-ft)

Remove cap screws (C) and replace discharge beater wings (D) as required. Tighten cap screws to specification.

Specification

Discharge Beater Wing Cap Screws -Torque 70 N·m (52 lb-ft)

H85626

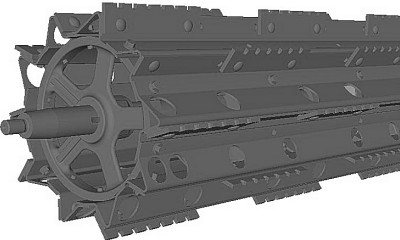

Discharge Beater Wing (Standard)

H85627

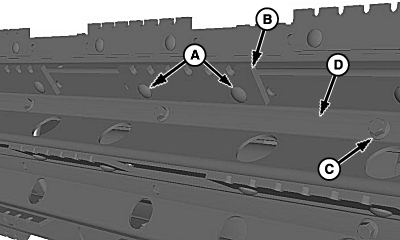

Discharge Beater Wing (Standard)


A-Round Head Bolt(s)
B-Discharge Beater Wear Strip
C-Cap Screws
D-Discharge Beater Wings
