Feeder House Fixed Speed Drive Belt-Adjusting

CAUTION: Shut OFF engine, set parking brake and remove key.

Lower safety stop and remove left-hand feeder house shields.

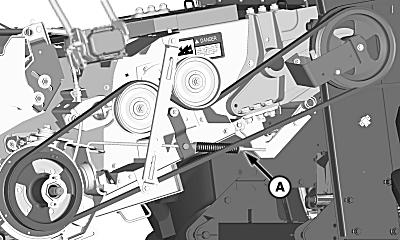

Tighten nuts (A) to position washer between end of gauge and bottom of step.

Install feeder house shields previously removed.

A-Nuts

OUO6075,0000AD4 -19-16JUL07-1/1
