CommandTouch Multi-Speed Feeder House Drive Belt (Optional)-Replacing

CAUTION: Shut OFF engine, set parking brake and remove key.

Lower safety stop and remove left-hand feeder house shields.

Remove shields (A).

A-Shields

OUO6075,0000AD7 -19-23APR07-1/2

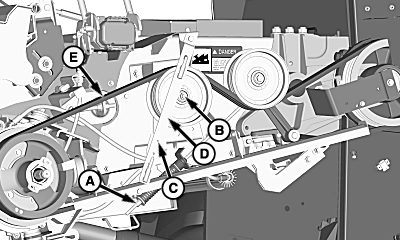

Loosen nuts (A) to relieve tension on drive belt and loosen idler nut (B).

Remove cap screw and nut (C) and swing bracket (D) out of way.

Remove drive belt (E) from sheaves.

Install replacement drive belt and move idler to 3/4 of way up slot and tighten idler nut.

Tighten nuts to position washer between end of gauge and bottom of step.

Swing bracket into position and retain with cap screw and nut.

Install feeder house shields previously removed.

A-Nuts
B-Idler Nut
C-Cap Screw and Nut
D-Bracket
E-Drive Belt

OUO6075,0000AD7 -19-23APR07-2/2
