Cleaning Fan Actuator-Adjusting

causym CAUTION: Shut OFF engine, set parking brake and remove key.

NOTE: Cleaning fan minimum/maximum speed is controlled electronically, instead of using stop nuts to set operating speeds.

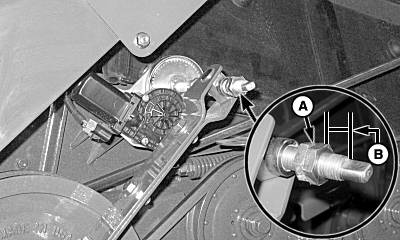

Verify nuts (A) are jammed together and set to distance (B).

Specification

Nut to End of Threads -Distance 13 mm (1/2 in.)

H89228


A-Nuts
B-Distance

OUO6075,0000BFD -19-12JUL07-1/1
