Draper Belt Speed Adjust Switch (If Equipped)

Draper belt speed adjust switch (A) changes speed of belt as determined by operator.

1. Press draper belt speed adjust switch.

2. Indicator light (B) comes on indicating setting can be adjusted.

3. Turn selection dial (C) towards plus (+) symbol to increase belt speed or towards minus (-) symbol to decrease belt speed.

4. CommandCenter display shows operator adjustment setting.

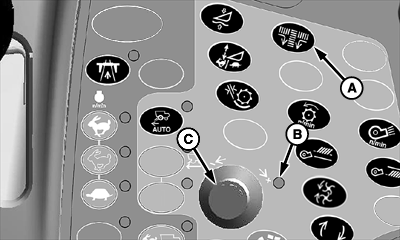

H87214


A-Draper Belt Speed Adjust Switch
B-Indicator Light
C-Selection Dial

NS43404,0000013 -19-21APR08-1/1
