Lock and Unlock Gauge Wheels (If Equipped)

To cut crop closer to the ground, the gauge wheels can be locked up. This prevents the gauge wheels from supporting the platform, using the attachment frame as the main source of float.

CAUTION: Make sure that no pressure exists within the system when inserting and removing lockout pins. Lower pressure using the steps provided before inserting and removing pins.

1. With platform attached to combine, lower platform to the ground.

2. With combine running, press cutterbar pressure adjust switch (A).

3. Turn pressure control dial (B) counter clockwise to lower pressure.

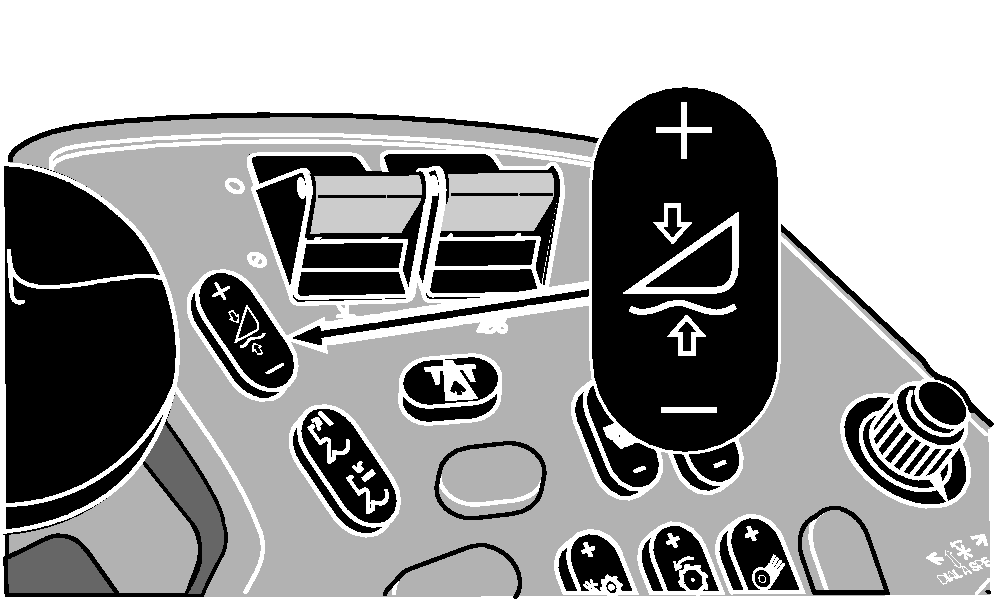

NOTE: On 50 & 60 series combines, press (-) to lower pressure. Pressure is shown on cornerpost display.

4. Once platform has lowered to the ground, remove lockout pin (C) from storage position (D) and place into lockout position as shown.

5. Repeat procedure on opposite side.

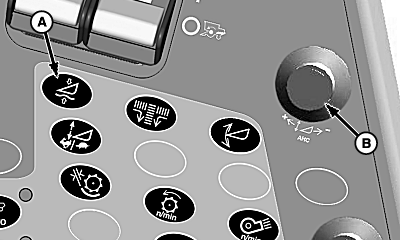

A-Cutterbar Pressure Adjust Switch
B-Pressure Control Dial

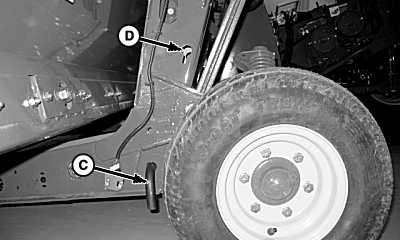

C-Lockout Position
D-Storage Position

NS43404,0000044 -19-09JUN08-1/1
