Open Side Shields

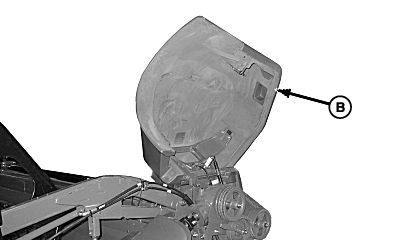

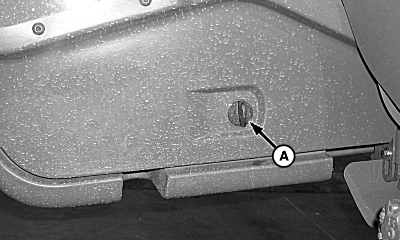

1. Turn latch (A) to unlock rear side shield (B).

2. Lift shield upwards as shown.


A-Latch
B-Rear Side Shield

H90664
H90665

Left Side Shown

NS43404,000005F -19-02JUN08-1/3

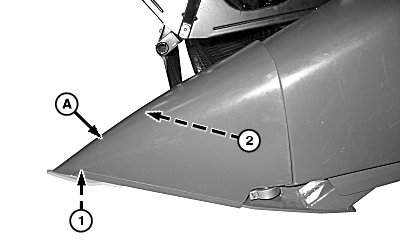

3. Raise front corner (1) of front side shield (A).

4. Raise shield up and forward (2) to expose knife drive.


A-Front Side Shield

H91252

NS43404,000005F -19-02JUN08-2/3

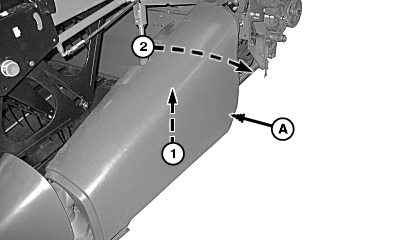

5. Lift side shield (A) up (1) and pull out (2) to expose drive shaft.

6. Close shields in reverse order of opening.


A-Side Shield

H90667

Left Side Shown
